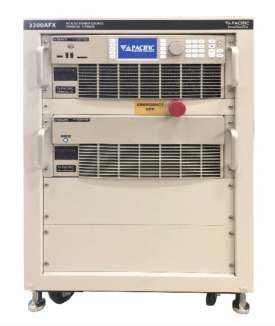

Pacific Power Source 3240AFX-2A
AC and DC Power Source, 24kVA, 1, Split or 3 Phase

Download Product Datasheet

Product Overview

RENT PACIFIC POWER SOURCE 3240AFX-2A AC and DC Power Source (Call for Availability)

The advanced digital power conversion technology used in the Pacific Power 3240AFX AC and DC Power Source results in higher power density than any other offering. It has been designed to support increasingly complex avionics, radar and weapons systems where more power is needed in less available space. With extensive control over voltage, current, frequency, phase angles and transients, the 3240AFX power supply is capable of handling complex Test Program Sets (TPS's) with minimal programming effort. It's AC and DC operating modes provide support for both AC and DC powered equipment providing greater flexibility.

The Pacific Power 3240AFX has a built-in web server that supports an operator friendly user interface from a web browser. Built-in digital scope function captures voltage and current time domain signals, perfectly synchronized to the output frequency. Voltage and current displayed with accurate phase relationship. The Pacific Power 3240AFX rich feature set supports a wide variety of AC power test applications. The 3240AFX doubles as a DC power supply with either a single DC output or up to three individual bipolar (2-Quadrant) DC outputs. Available voltage range is 425Vdc.

Specifications for the Pacific Power 3240AFX-2A AC and DC Power Source Include:

See Datasheet for full specifications
