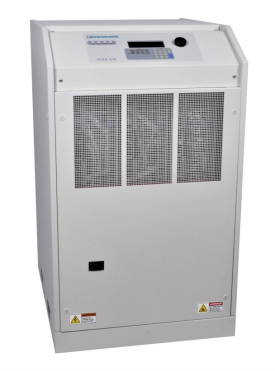

California Instruments MX45-3PI
AC DC Power Supply System, 45kVA, 1 and 3 Phase

Download Product Datasheet

Available Option Configurations

Config-04

• 480 - 480VAC + or - 10% L-L, 3 wire + Ground
• HV - Adds 400 V AC-only Output Range
• SNK - Regenerative Source
• MSRP: $126,096 | Available for Rental    GET QUOTE

Config-16

• 1399 - MIL-STD 1399-300 Test, B
• 411 - IEC 1000-4-11 Test Firmware
• 413 - IEC 1000-4-13 Test Firmware
• 480 - 480VAC + or - 10% L-L, 3 wire + Ground
• 704 - Mil Std 704 A - F Test Firmware/Software
• HV - Adds 400 V AC-only Output Range
• LAN - LXI Ethernet Interface (disables RS232)
• MB - Allows two MX45's to become one MX90 (DB37 cable required)
• SNK - Regenerative Source
• WHM - Watt-Hour Measurement Option
• MSRP: $142,153 | Available for Rental    GET QUOTE

Config-18

• 480 - 480VAC + or - 10% L-L, 3 wire + Ground
• HF - Increases maximum frequency to 1000 Hz
• HV - Adds 400 V AC-only Output Range
• MB - Allows two MX45's to become one MX90 (DB37 cable required)
• SNK - Regenerative Source
• MSRP: $128,226 | Available for Rental    GET QUOTE

Config-22

• 480 - 480VAC + or - 10% L-L, 3 wire + Ground
• SNK - Regenerative Source
• MSRP: $118,201 | Available for Rental    GET QUOTE

Config-25

• 160 - RTCA/DO-160D, DO-160E, and EUROCAE Test Firmware
• 411 - IEC 1000-4-11 Test Firmware
• 413 - IEC 1000-4-13 Test Firmware
• 480 - 480VAC + or - 10% L-L, 3 wire + Ground
• ABD - ABD0100.1.8 Test Option
• B787 - Boeing 787 Test, Rev. C
• HF - Increases maximum frequency to 1000Hz
• MSRP: $125,110 | In Stock!    GET QUOTE

Product Overview

RENT California Instruments MX45-3PI AC Power Source (Call for availability)

    As governments are moving to enforce product quality standards, regulatory compliance testing is becoming a requirement for a growing number of manufacturers. The California Instruments MX45 power source is designed to meet AC source requirements for use in compliance testing such as IEC 61000, 3-2, 3-3, 3-11, and 3-12. The MX45-3PI controller has a powerful AC and DC transient generation system that allows complex sequences of voltage, frequency and waveshapes to be generated. When combined with the multiphase arbitrary waveform capabilities, the AC and DC output possibilities are truly exceptional.

    This high power AC and DC test system covers a wide spectrum of AC and DC power applications. The MX45 delivers up to 45 kVA and operates using single or three phase output in AC or AC+DC mode. In DC mode, 50% of the AC power level is available. The MX45-3PI amplifier is designed to reverse the phase relationship between the AC input voltage and current in order to feed power back onto the utility grid. This mode of operation is particularly useful when testing grid-tied products that feed energy back onto the grid. For high power applications, two or three MX45 chassis can be combined to provide 90 to 135 kVA of three phase power.

Specifications of the California Instruments MX45-3PI  AC Power Source includes:

See Datasheet for Full Specifications
