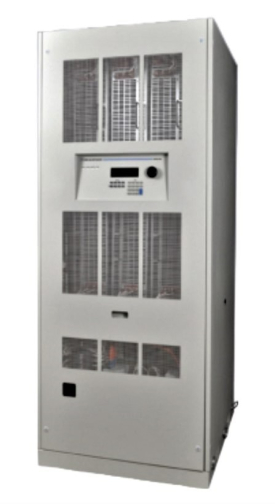

California Instruments RS90-3PI
High Power AC and DC Power Test System, 90kVA, 3-Phase, Programmable

Download Product Datasheet

Product Overview

RENT California Instruments RS90-3PI AC Power Source (Call for availability)

    The California Instruments RS90-3PI power source consists of multiple high power AC and DC power systems that provide controlled AC and DC output for ATE and product test applications. The RS90-3PI is much more than a programmable AC, DC or AC+DC power source. It also incorporates an advanced digital signal processor based data acquisition system that continuously monitors all AC source and load parameters. Common AC and DC measurement parameters are automatically provided by the data acquisition system and are displayed in numeric form on the front panel LCD display.

    The built-in output transient generation and read-back measurement capability of the California Instruments RS90-3PI offers the convenience of a powerful, and easy to use, integrated test system. It delivers up to 90 kVA of AC or AC + DC power. In DC mode, 50% of the AC power level is available. For advanced test applications, the programmable controller version offers full arbitrary waveform generation, time and frequency domain measurements, and voltage and current waveform capture.  The RS90 can deliver up to 720 Amps of repetitive peak current (150 V AC range) per phase to handle high crest factor three phase loads.

Specifications of the California Instruments RS90-3PI  AC Power Source includes:

See Datasheet for Full Specifications
