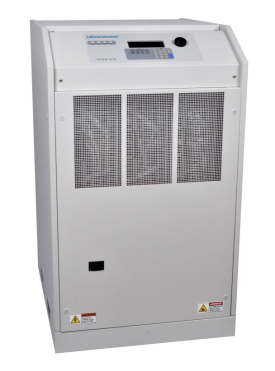

RENT California Instruments MX30-3PI AC Power Source (Call for availability)
The California Instruments MX30-3PI high power AC and DC test system covers a wide spectrum of AC and DC power applications at an affordable cost. This higher power density has been accomplished without the need to resort to elaborate cooling schemes or additional installation wiring. For advanced test applications, the programmable controller version offers full arbitrary waveform generation, time and frequency domain measurements, and voltage and current waveform capture. These operate using single or three phase output in AC or AC+DC mode. In DC mode, 50% of the AC power level is available.
The built-in output transient generation and read-back measurement capability of the MX30-3PI AC power source offers the convenience of a powerful, and easy to use, integrated test system. The MX30-3Pi can deliver up to 240 Amps of repetitive peak current (150 V AC range) per phase to handle three phase loads. It also allows simulation of unbalanced harmonic line conditions. With a crest factor of up to 3.6, the MX30-3PI AC source can drive difficult nonlinear loads with ease. When combined with the multiphase arbitrary waveform capabilities, the AC and DC output possibilities are truly exceptional.
Specifications of the California Instruments MX30-3PI AC Power Source includes:
AC Power | 30kVA |
Voltage Low/High | 0-150V/0-300V |
Frequency | 40-1000Hz |
Current Low/High | 100A/50A |
Power Factor | 0 to unity |
See Datasheet for Full Specifications
