Tektronix Encore

Chroma 63640-80-80
DC Load Module, 400W, 80V, 80A

Electronic Loads >> DC Electronic Loads, up to 3kW >> DC Load Module, 400W, 80V, 80A
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63640-80-80

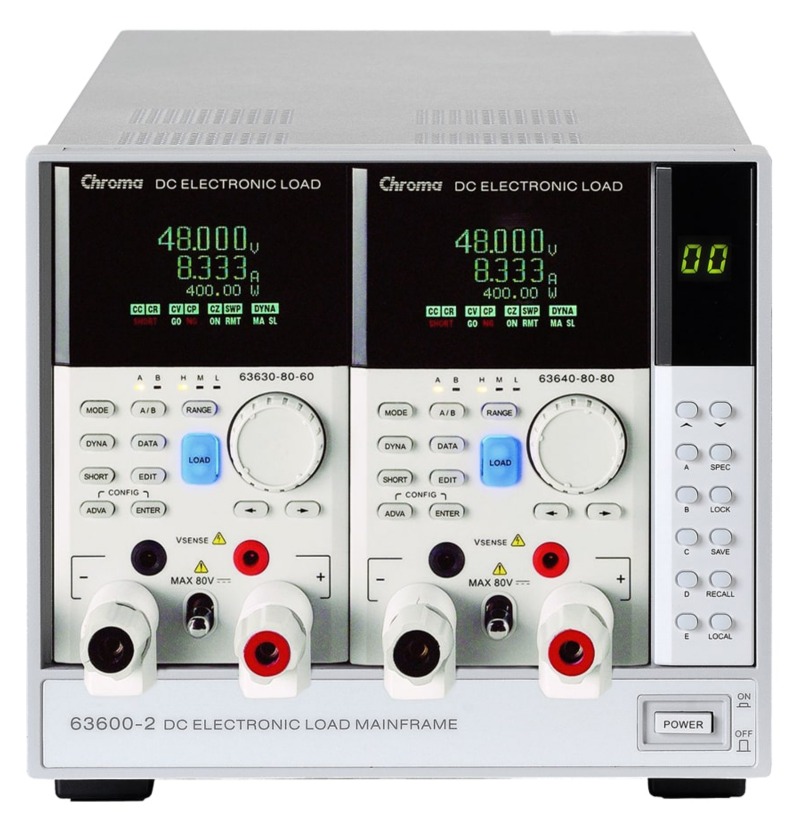

Chroma 63640-80-80 DC Load Module, 400W, 80V, 80A

Electronic Test and Measurement Equipment

Chroma 63640-80-80 DC Load Module, 400W, 80V, 80A Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • No Options Included
  • In Stock!    GET QUOTE

Product Overview

RENT CHROMA 63640-80-80 DC Electronic Load Module


    Chroma's 63600 series DC electronic loads are designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, server power supplies, and power electronic components. The state of the art design uses DSP technology to simulate non-linear loads using a unique CZ operation mode allowing realistic loading behavior. The Chroma 63600 one, two or five slot electronic load mainframes accept user-installable load modules for easy system configuration. Each module can be operated independently or synchronized so that all modules start operating at the same time while running independent programs.

    The Chroma 63640-80-80 DC load module provides three operating current ranges and a built-in 16-bit, precision A/D converter, achieving 0.025%+0.01%F.S., 0.05%+0.05%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. Real time measurement of voltage and current are integrated into each Chroma 63640-80-80 load module. The Chroma 63640-80-80 offers high speed, programmable dynamic loading, sweep simulation and control capability never before achieved. When the need is for increased power, paralleling two or more loads can be done to achieve the desired load current. Using several loads in parallel to emulate a single load dramatically simplifies operation and allows them to be used for both multiple output power supplies and larger single output supplies.


Chroma 63640-80-80 DC Electronic Load Module Specifications:

Configuration 400W
Voltage 0-80V
Current 0-0.8A 0-8A 0-80A
Power 0-60W 0-60W 0-400W
Min Operating Voltage 0.4V@0.8A 0.4V@8A 0.4V@80A


The Chroma 63640-80-80 load modules operate in constant current, constant voltage, constant power or constant resistance to satisfy a wide range of test requirements (See data sheet for full specifications)


For Use with the Chroma 63600-1Chroma 63600-2 and Chroma 63600-5


Request A Quote

Rent      Buy      Repair
