Chroma 63600-1
DC Electronic Load Mainframe

Electronic Loads >> DC Electronic Loads, up to 3kW >> DC Electronic Load Mainframe
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63600-1

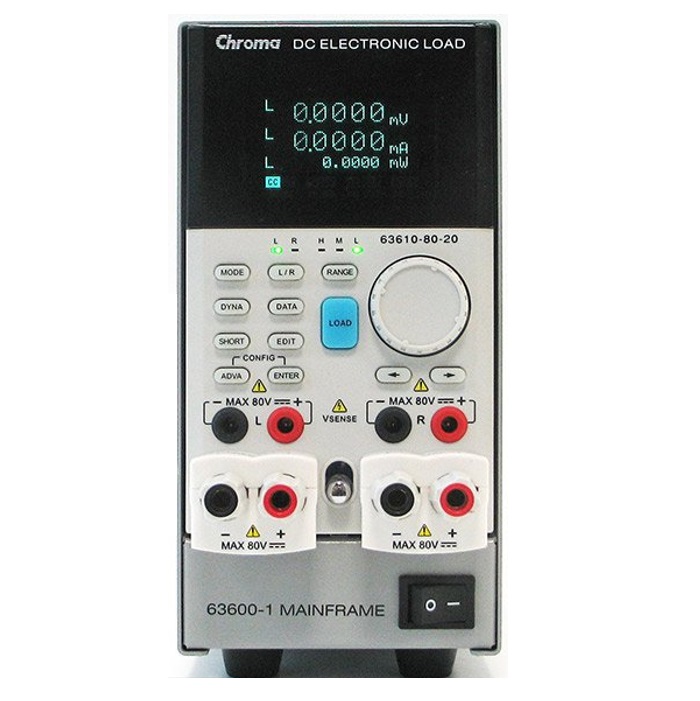

Chroma 63600-1 DC Electronic Load Mainframe

Electronic Test and Measurement Equipment

Chroma 63600-1 DC Electronic Load Mainframe Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT CHROMA 63600-1 Single Slot DC Electronic Load Mainframe (call for availability)



    Chroma's 63600 series DC electronic loads are designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components. The state of the art design uses DSP technology to simulate non-linear loads using a unique CZ operation mode allowing realistic loading behavior. The Chroma 63600-1 is a single slot mainframe, ideal for when a single DC electronic load module is all that is required. The digital interface option is not available for this mainframe.

    Real time measurement of voltage and current are integrated into each DC load module using a 16-bit measurement circuit with three current ranges, achieving 0.025%+0.01%F.S., 0.05%+0.05%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. The load modules can simulate a wide range of dynamic loading applications, with programmable load levels, slew rates, duration, and conducting voltage, and has a dynamic sweep function to meet the test requirements of ATX power supplies.  All load modules are configured to work independently, though testing can be carried out simultaneously at multiple outputs via remote control to simulate real life application. The load modules all operate in constant voltage, current, resistance, power, or impedance to satisfy a wide range of test requirements.



Compatible Load Modules:

63610-80-20   80V/20A/100W x 2
63630-80-60       80V/60A/300W
63630-600-15   600V/15A/300W
63640-80-80   80V/80A/400W
63640-150-60   150V/60A/400W



For 2-Slot and 5-Slot Mainframes, see Chroma 63600-2 and Chroma 63600-5
