Manufacturer: Chroma
Model: 63600-2

Chroma 63600-2 DC Electronic Load Mainframe

Electronic Test and Measurement Equipment

Chroma 63600-2 DC Electronic Load Mainframe Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

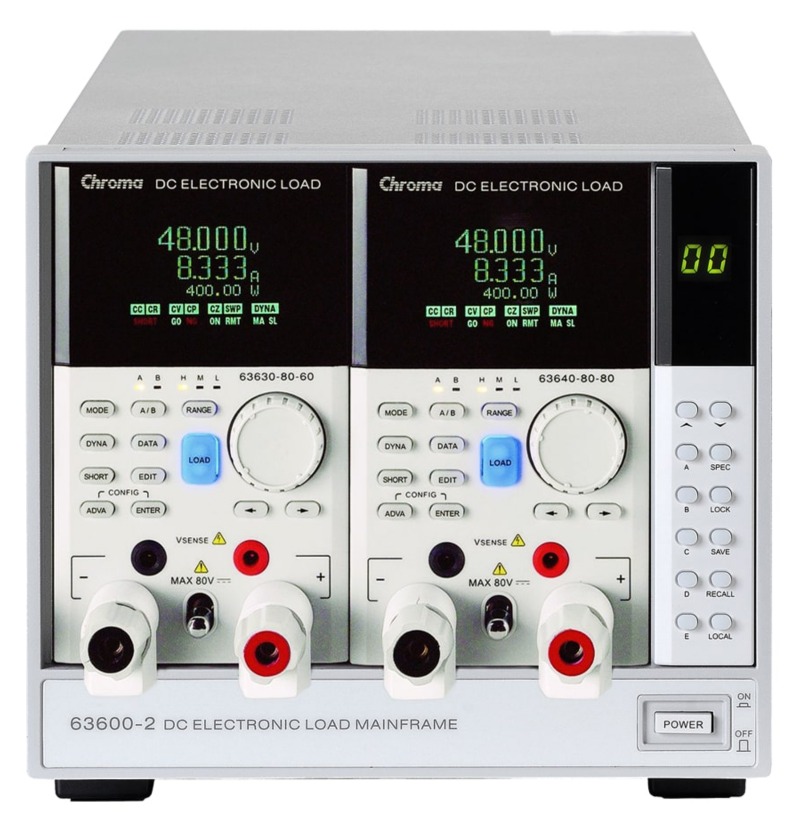

RENT CHROMA 63600-2  2-Slot DC Electronic Load Mainframe

    Modern electronic devices operate at very high speed and demand rapid transient response characteristics. To address these applications the Chroma 63600 Series DC Electronic Loads offer high speed, programmable dynamic loading, sweep simulation and control capability never before achieved. The Chroma 63600-2 electronic load mainframe accepts two user-installable 63600 series load modules for easy system configuration, designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, server power supplies, and power electronic components. 100 programmable loading sequences enable the user to simulate various real world conditions. In addition, each module can be operated independently or synchronized so that all modules start operating at the same time while running independent programs.

    The 63600-2 provides three operating current ranges and a built-in 16-bit, precision A/D converter, achieving 0.025%+0.01%F.S., 0.05%+0.05%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. The DC load modules operate in constant voltage, current, resistance, power, or impedance to satisfy a wide range of test requirements and real-time measurement of voltage and current are integrated using a 16-bit measurement circuit with three current ranges. Micro-processing capability has been integrated into each load module to optimize the speed and control among multiple load modules. All load modules are configured to work independently, though testing can be carried out simultaneously at multiple outputs via remote control to simulate real life application. Also included in the Chroma 63600-2 are self-diagnostic routines and full protections against OP, OC, OT and alarm indicating OV, reverse polarity. This ensures the quality and reliability and provides protection to units under test.


Compatible Load Modules:

63610-80-20   80V/20A/100W x 2
63630-80-60       80V/60A/300W
63630-600-15   600V/15A/300W
63640-80-80   80V/80A/400W
63640-150-60   150V/60A/400W


For Single Slot and 5-Slot Mainframes, see Chroma 63600-1 and Chroma 63600-5
