Chroma 63208
DC Electronic Load, 15600W, 600A, 80V

Electronic Loads >> DC Electronic Loads, More than 10 kW >> DC Electronic Load, 15600W, 600A, 80V
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63208

  • Chroma 63208 DC Electronic Load, 15600W, 600A, 80V

    Electronic Test and Measurement Equipment

    Chroma 63208 DC Electronic Load, 15600W, 600A, 80V Product Datasheet Download Product Datasheet

    Rent Test Equipment

    Available Option Configurations

    Config-01

    • No Options Included
    • Available for Rental    GET QUOTE

    Product Overview

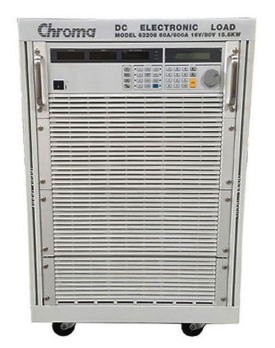

    RENT CHROMA 63208 Programmable DC Electronic Load



        The Chroma 63208 series of programmable electronic loads are designed for a wide variety of dc power conversion products including DC power sources, battery chargers, server power supplies, dc-dc converters, batteries and many others.  Especially well-suited for high power applications, the Chroma 63208 DC loads have a built-in 15-bit precision A/D converter that can achieve 0.05%+0.05% F.S., 0.1%+0.1% F.S. and 0.3%+0.3% F.S. accuracy for voltage, current, and power measurements respectively.

        The Chroma 63208 electronic DC load can sink rated current down to 1VDC even under the highest specified rise time. This unique feature guarantees the best loading performance for low voltage/high current applications.  To satisfy many testing applications, the Chroma 63208 electronic loads offer outstanding high speed, programmable dynamic load simulation and control capabilities. The load can short a DC power source or any power supply that has a built in current limit function and measure its short circuit current so that users can verify if the UUT current limit is functional.  GPIB, RS-232 and RS-485 PC controllable interfaces combined with the external waveform simulation and voltage/current monitoring capability make the Chroma 63208 DC electronic load ideal for automatic system integration.



    Specifications for the Chroma 63208 High Power DC Electronic load include:

      Low High
    Power 1560W 15600W
    Current 0-60A 0-600A
    Voltage 0-80V 0-80V
    Min Operating Voltage 0.5V@30A/1V@60A 0.5V@300A/1V@600A



    See Datasheet for full specifications



    Other models is this series are 6320163202632036320463205632066320763209632106321163212.

    REQUEST A QUOTE
