Chroma 63203
DC Electronic Load, 5200W, 600A, 80V

Electronic Loads >> DC Electronic Loads, More than 3kW up to 10kW >> DC Electronic Load, 5200W, 600A, 80V
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63203

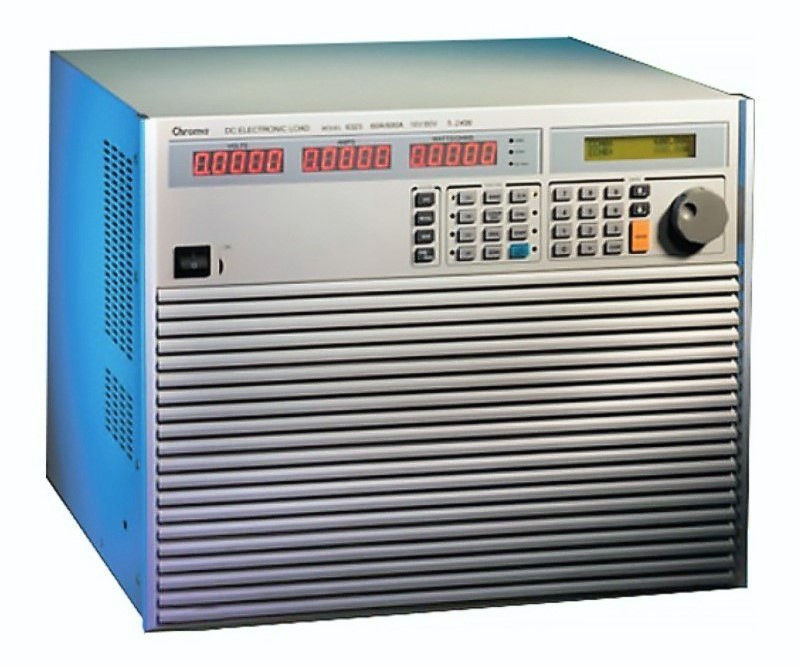

Chroma 63203 DC Electronic Load, 5200W, 600A, 80V

Electronic Test and Measurement Equipment

Chroma 63203 DC Electronic Load, 5200W, 600A, 80V Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-02

  • 4KW - Earlier Model, Max 4kW Output Version
  • In Stock!    GET QUOTE

Product Overview

RENT CHROMA 63203 High Power DC Electronic Load



    The Chroma 63203 series especially well-suited for high power applications such as switch-mode rectifiers and for discharging batteries packs and fuel cells.  It has a high power rating, parallel and synchronization capabilities, and the ability to provide up to 2.7 times of rated power for short duty cycle loading.  Four operating modes provide different load simulation methods designed for various applications. Chroma's 63203 DC electronic loads provide constant current, constant resistance, constant voltage and constant power modes.

    With front LCD displays and rotary knob, the Chroma 63203 DC electronic loads offer versatile bench top operation. For low voltage/high current applications, the Chroma 63203 is available with a low voltage mode, which provides ultra-low voltage operation and in many cases can compensate for large voltage loss in the input wiring. With it's unique external waveform simulation and Master / Slave control capability, the Chroma 63203 DC electronic loads allow users to parallel and synchronize more than one load together to provide unlimited load simulation and increased power. The user friendly software includes all the functions of Chroma 63203 DC electronic load, and is easy to understand and operate.



Specifications for the Chroma 63203 High Power DC Electronic load include:

  Low High
Power 520W 5200W
Current 0-60A 0-600A
Voltage 0-80V 0-80V
Min Operating Voltage 0.5V@30A/1V@60A 0.5V@300A/1V@600A



See Datasheet for full specifications
