Rent or Buy Fluke DSX-5000 Versiv Cable Analyzer / Certifier, Cat 6A



Tektronix Encore




Fluke DSX-5000
Versiv Cable Analyzer / Certifier, Cat 6A

Telecommunication and Wireless >> LAN Cable Testers, Analyzers, Certifiers >> Versiv Cable Analyzer / Certifier, Cat 6A
Rent Used Test Equipment
Manufacturer: Fluke
Model: DSX-5000

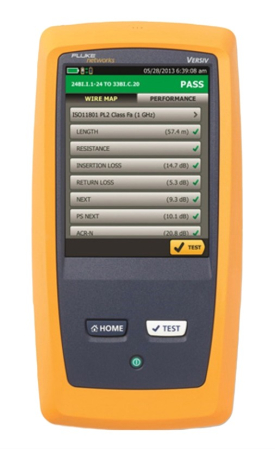

Fluke DSX-5000 Versiv Cable Analyzer / Certifier, Cat 6A

Electronic Test and Measurement Equipment

Fluke DSX-5000 Versiv Cable Analyzer / Certifier, Cat 6A Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • No Options Included
  • MSRP: $10,950 | In Stock!    GET QUOTE

Product Overview

FLUKE DSX-5000 RENTAL

The Fluke DSX-5000 Cable Analyzer, part of the Fluke Networks Versiv family, improves the efficiency of copper certification with unmatched speed for testing Cat 6A and Class FA while meeting draft IEC Level V – the most stringent accuracy requirement. The ProjX Management System helps ensure jobs are done correctly the first time and helps tracks progress from set-up to systems acceptance. Customer Satisfaction Survey? Piece of cake.

The Versiv platform supports modules for fiber testing (Both OLTS and OTDR) and Wi-Fi Analysis and Ethernet troubleshooting. The platform is easily upgradeable to support future standards. Troubleshoot faults faster with the Taptive user interface which graphically displays the source of failures including crosstalk, return loss and shield faults. Analyze test results and create professional test reports using LinkWare™ Management Software.

The Fluke DSX-5000 1.2 GHZ DSX Series Cable Analyzer copper tester / certifier enables testing and certification of twisted pair cabling for up to 10 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A or Class FA. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the quicker you can stuff dollar bills into your pocket. As you know however, there are a lot of things that slow the process down - setting up the tester incorrectly, testing to the wrong limits, waiting for skilled techs to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers can not understand.

It all starts with nine second Cat 6 Autotest that means you can meet TIA-568-B and ISO 11801:2002 certification requirements and receive structured cabling warranties much faster than ever before. BOOYAH!

With all this speed you will also gain increased accuracy. The Fluke DSX-5000 1.2 GHZ DTX Series Cable Analyzer is the only independently verified tester to obtain UL classification for ISO Accuracy Level IV.

Fluke Networks' DSX-5000 CableAnalyzer is Intertek (ETL) Verified in accordance with the IEC-61935-1 specifications for accuracy Level IV, and draft accuracy Level V, and in accordance with the ANSI/TIA-1152 specifications for Level IIIe.

Specifications of the Fluke DSX-5000 include:

  • Shielded and unshielded pair LAN cabling: TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω
  • Permanent Link Adatpers:
    • Plug type: shielded RJ45
    • Optional Plug type: Tera
  • Channel Adapters:
    • Jack type: shielded RJ45
    • Optional Jack type: Tera
  • TIA Test Standard: Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
  • ISO/IEC Test Standards: Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
  • Maximum Frequency: 1200 MHz
  • Speed of Autotest: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds
  • Support Test Parameters: Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
  • Input Protection: Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
  • Display: 5.7 in LCD display with a projected capacitance touchscreen
  • Battery Life: 8 hours
