Tektronix Encore

Anritsu MG3696A
Signal Generator, 2 to 65 GHz (or 0.01 to 65 GHz)

Signal Generators >> Signal Generators Over 40 GHz >> Signal Generator, 2 to 65 GHz (or 0.01 to 65 GHz)
Rent Used Test Equipment
Manufacturer: Anritsu
Model: MG3696A

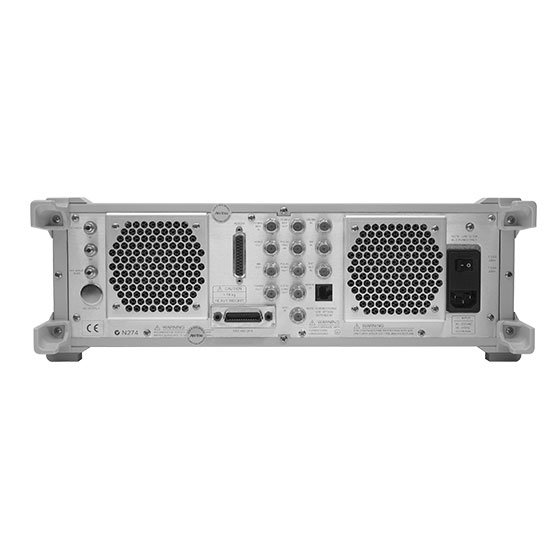

CLICK TO ENLARGE Anritsu MG3696A Signal Generator, 2 to 65 GHz (or 0.01 to 65 GHz)

Electronic Test and Measurement Equipment

Anritsu MG3696A Signal Generator, 2 to 65 GHz (or 0.01 to 65 GHz) Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • 25B - Full Modulation Suite (Opts. 12, 13, 14, 23 & 24)
  • 5 - RF Coverage, 10 MHz to 2 GHz
  • MSRP: $79,300 | In Stock!    GET QUOTE

Product Overview


The Anritsu MG3696A is a broadband high performance Signal Generator that covers RF and microwave frequencies from 2 to 65 GHz (or optionally from 0.01 GHz) in a single instrument. For millimeter wave frequencies, the MG3696A coverage can be extended up to 110 GHz or beyond, with external multipliers. The MG3696A Signal Generator is extremely configurable, and able to meet your exact need, minimizing your initial investment. The MG3696A is also very adaptable with a comprehensive list of upgrades for your future needs.

The MG3696A offers all the capabilities of a high-end microwave generator at the highest performance level. It leverages the technology leading phase noise performance of its predecessor.

It offers outstanding output power with the lowest spectral purity content. Frequency can be swept digitally or via an analog ramp sweep. A CW frequency could be phase offset or locked within an external phase lock loop. Amplitude, Frequency, Phase, and Pulse modulations are available externally or internally-driven. An external software package simplifies the use of these modulations simultaneously, and allows the down-loading of user-defined modulation waveforms. For IQ modulation, the IF input option allows the easy up-conversion of an externally IQ-modulated RF signal.

Features of the Anritsu MG3696A include:

  • Frequency Range: 2 to 65 GHz (or optionally 0.01 GHz to 65 GHz)
  • Resolution - 0.01 Hz
  • Phase Offset - 0.1 dB steps
  • RF Frequency Coverage Extension, down to 0.1 Hz
    • Best solution for dual RF and Microwave applications
    • An optional down-converter covers 10 MHz to 2 GHz
    • An optional DDS offers additional coverage to 0.1 Hz
  • Excellent Phase Noise performance as standard
    • Add optional ultra low phase noise > 2 GHz
    • Add an optional digital down-converter for:
    • Lowest Phase Noise RF source from 10 MHz to 2.2 GHz
    • < 130 dBc/Hz @ 1 GHz, 10 kHz offset
  • High Output Power
    • w/ opt. 4: +12 dBm standard (@ 2GHz)
    • w/ opt. 5: +12 dBm standard (@ 2 GHz)
    • +10 dBm standard (@ 2 to 20 GHz)
    • +3 dBm standard (@ >20 to 65 GHz)
  • Wide Attenuation Range
    • 110 dB Mechanical Attenuator Option
    • 120 dB Electronic Attenuator Option
  • AM/FM/ØM/PM, External or Internal
    • 100 ns leveled pulse width >2 GHz, 1 µs
  • IF Up-Conversion Option
    • Obtain IQ-modulation microwave signals by up-converting a modulated IF signal
  • Digital or Analog Sweep
