Agilent E8267D, Keysight E8267D, HP E8267D
PSG Vector Signal Generator, Up to 44 GHz

CLICK TO ENLARGE

Download Product Datasheet

Available Option Configurations

Config-03

• UNU - Pulse modulation
• UNY - Enhanced Ultra Low Phase Noise
• 009 - Removable Flash Memory
• 1EU - High Output Power (standard)
• 544 - Frequency Range: 250 kHz - 44 GHz
• 602 - Internal baseband generator, 64 MSa memory

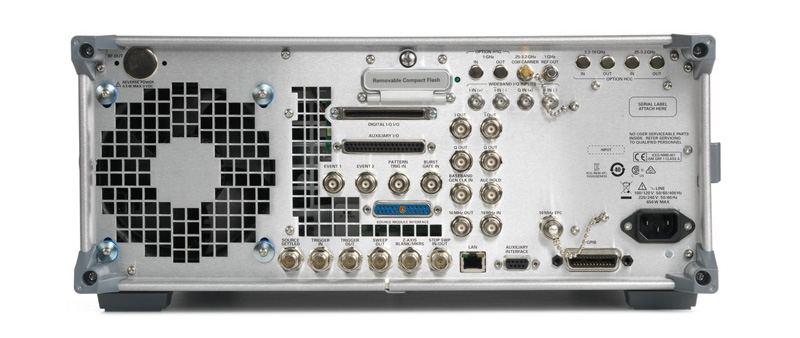

• HCC - Provides 250 MHz - 10 GHz in and out on the rear panel
• 1E1 - Mechanical Attenuator (standard)
• HEC - External Baseband Generator Clock Input, Rear Panel
• UNT - AM, FM, phase modulation, and LF output
• MSRP: $243,346
• Available for Rental    GET QUOTE

Config-04

• 007 - Analog Ramp Sweep
• 1EA - High Power, +17dBm > 3.2 GHz
• 1EH - Improved harmonics below 2 GHz
• 403 - Calibrated noise, AWGN
• HEC - External Baseband Generator Clock Input, Rear Panel
• UNT - AM, FM, phase modulation, and LF output
• 520 - Frequency Range: 250 kHz - 20 GHz
• UNR - Enhanced Phase Noise Performance
• UNU - Pulse modulation
• 005 - Internal Hard Drive, 6 GHz
• 1ED - Type-N (f) RF output connector
• 602 - Internal baseband generator, 64 MSa memory
• 1E1 - Mechanical Attenuator (standard)
• MSRP: $188,980
• Available for Rental    GET QUOTE

Product Overview

The Keysight E8267D (Agilent) PSG Vector Signal Generator is the industry's first integrated microwave vector signal generator with I/Q modulation up to 44 GHz. It features an advanced wideband internal baseband generator capable of flexible arbitrary waveform playback or sophisticated real-time signal generation. The E8267D PSG also has a built-in wideband I/Q modulator that delivers up to 2 GHz RF modulation bandwidth and is a perfect complement to Agilent's N6030A stand-alone wideband arbitrary waveform generator for I/Q waveform simulations up to 1 GHz RF bandwidth. This groundbreaking integrated vector functionality, only available in the E8267D PSG, drastically simplifies the generation of complex modulated signals for design and manufacturing test applications in aerospace, defense, satellite communications, and broadband wireless.

You can completely tailor the PSG for today's RF and microwave test application while easily upgrading in the future as your needs evolve. Choose from a variety of optional enhancements to configure the E8267D PSG for applications ranging from distortion test to baseband coding algorithm development and advanced digital microwave transceiver design verification. See a complete listing of the E8267D PSG performance enhancing and accessory options below.

Features and specifications of the Keysight E8267D (Agilent) Vector Signal Generator include:

• 250 kHz to 20, 31.8, or 44 GHz (.001 Hz resolution)
• +22 dBm @ 20 GHz and +18 dBm @ 40 GHz output power (typ)
• 160 MHz (extendable to 2 GHz) RF modulation bandwidth
• AM, FM, ØM, and pulse
• ASK, FSK, MSK, PSK, QAM, custom I/Q
• Step, list, and ramp sweep frequency and power
• Source control using PSA Series spectrum analyzer
• Internal baseband generator (80 MHz RF BW): arbitrary waveform and real-time I/Q
• Compatible with wideband (1 GHz) N6030A arbitrary waveform generator
• Create reference signals: radar, multitone, NPR, custom modulation, WLAN, and more - Signal Studio
• Digital I/O, fading, and PC HDD waveform streaming - Baseband Studio
• 10BaseT LAN and GPIB
• SCPI and IVI-COM drivers
• Backwards compatible with all PSG signal generators

Frequency Option Selection (also determines base price):

• Option 520: Frequency range from 250 kHz to 20 GHz
• Option 532: Frequency range from 250 kHz to 31.8 GHz
• Option 544: Frequency range from 250 kHz to 44 GHz

Click to see all the models Keysight / Agilent PSG Signal Generators
