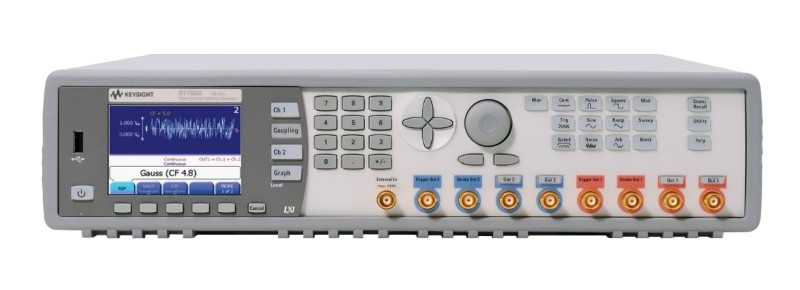

Agilent 81150A, Keysight 81150A, HP 81150A
Pulse Function Arbitrary Noise Generator, 1 uHz - 240 MHz

Download Product Datasheet

Product Overview

The Keysight 81150A (Agilent) Pulse Function Arbitrary Noise Generator, designed for best signal generation and optimum signal fidelity, is four instruments in one, and is perfect for accelerated ideal and real-world testing. The Pulse Generator lets you test your device, not your source, and provides superior precision pulses with highest timing stability that guarantees reproducible tests. The Pattern Generator's arbitrary bit-shaping emulates real-world conditions. The Function Arbitrary Generator lets you stress your device to its limits with versatile waveforms and modulation capabilities that adopt your signal to any real world signal. The Noise Generator combines repeatable noise with long repetition rates for simple problem identification.

The 2 channel version of the Agilent 81150A Pulse Function Arbitrary Noise Generator allows coupling / uncoupling of the channels so that you can generate signals with a defined delay or the channels work entirely independent. The channel add function allows you to add a distorted signal from one channel to a clean signal from the other channel.

Features and Specifications of the Keysight 81150A (Agilent) Pulse Function Arbitrary Noise Generator include:

• Quad versatility - Optimum Signal Fidelity:
  • Pulse Generator:
    • 1µHz to 120 MHz pulse with variable rise/fall time
    • Trigger and Clock up to 120 MHz
    • Coupled and uncoupled channels, or channel add
    • Test the DUT and not the source
    • Superior precision pulses with highest timing stability
    • Reliable and repeatable tests
  • Optional Pattern Generator:
    • Ideal and distorted pattern up to 120 Mbit/s
    • Three level signals to wake up your device
    • Sequencing to get device into test mode
    • Proven stress test with PRBS up to 2³¹
    • Modulation capabilities to emulate:
      • AM - distortion and sinusoidal interface
      • FM - SSC
      • PM - jitter
    • 16 Mbit pattern memory for more complex pattern
    • Pass through Pattern to emulate SSC, Interference or jitter on protocol data
    • Test in addition to analog, digital and mixed signal devices
    • Arbitrary bit-shaping emulates real-world conditions e.g. overshoot or electrical idle
  • Function Arbitrary Generator:
    • 1 µHz to 240 MHz sine waveform output
    • 14-bit, 2 GSa/s arbitrary waveforms
    • FM, AM, PM, FSK, PWM up to 10 MHz modulation frequency, internally or externally
    • Precise signals and distorted signals to stress your device to its limit
    • Versatile waveforms and modulation capabilities adopt your signal to any real world signal
  • Noise Generator:
    • Crest factor (Peak/RMS) selectable 3.1, 4.8, 6.0, 7.0
    • Noise type:  deterministic, triggerable
    • Repetition 39 hours
    • Repeatable and stochastic noise
    • Combines repeatable noise with long repetition rates for simple problem identification
  • 512k samples deep arbitrary waveform memory per channel
  • Pulse, sine, square, ramp, noise and arbitrary waveforms
  • Differential outputs
  • Two selectable output amplifiers:
    • High Bandwidth Amplifier:
      • Amplitude:
        • 50 mVpp to 5 Vpp:  50 Ω into 50 Ω
        • 100 mVppto 10 Vpp:  50 Ω into open
      • Voltage Window:
        • ± 5 V:  50 Ω into 50 Ω
        • ± 10 V:  50 Ω into open
        • ± 9 V:  5 Ω into 50 Ω
    • High Voltage Amplifier:
      • Amplitude:
        • 100 mVPP to 10 VPP:  50 Ω into 50 Ω
        • 200 mVPP to 20 VPP:  5 Ω into 50 Ω, or 50 Ω into open
      • Voltage Window:
        • ± 10 V:  50 Ω into 50 Ω
        • ± 20 V:  5 Ω into 50 Ω or 50 Ω into open
  • Glitch free change of timing, parameters (delay, frequency, transition time, width, duty cycle)
  • Programming language compatible with Keysight 81101A (Agilent), 81104A, 81110A, 81130A and 81160A
  • LXI class C (rev. 1.1) compliant
