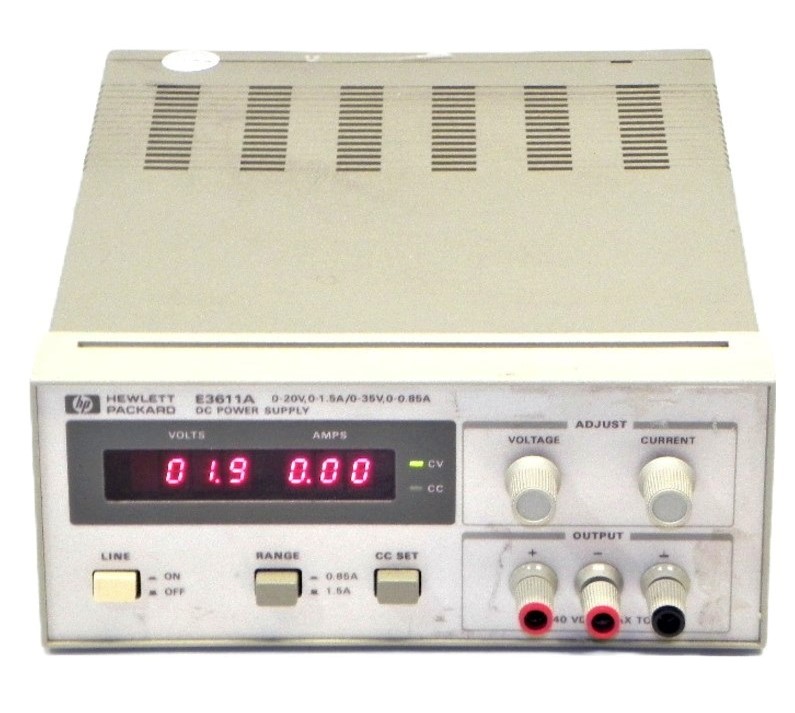

Agilent E3611A, Keysight E3611A, HP E3611A
Power Supply, 20V, 1.5A or 35V, .85A, 30W
Power Supplies >> DC Power Supplies, Low Voltage (less than 60V), Low Current (less than 60A) >> Power Supply, 20V, 1.5A or 35V, .85A, 30W
Model: E3611A
|
Download Product Datasheet
Product Overview
The Agilent E3611A Power Supply offers essential features for a tight budget. The single output, 30W, E3611A provides a small, compact size for bench use; low-noise and excellent regulation; and dual-range outputs. The Agilent 30W, single output E3611A is a reliable and convenient power for benchtop use, and offers solid performance and a variety of basic and enhanced capabilities.
Features and specifications of the HP E3611A Power Supply include:
Output Ratings (Maximum current is derated 1% per °C between 40° to 55°C)
- Range 1: 0 to 20 V, 0 to 1.5 A
- Range 2: 0 to 35 V, 0 to 0.85 A
- Power (max): 30 W
Ripple & Noise from 20 Hz to 20 MHz
- Voltage rms: 200 µV
- Peak-to-Peak: 2 mV
Load & Line Regulation
- 0.01% + 2 mV
Meter Resolution
- Voltage: 100 mV
- Current: 10 mA
