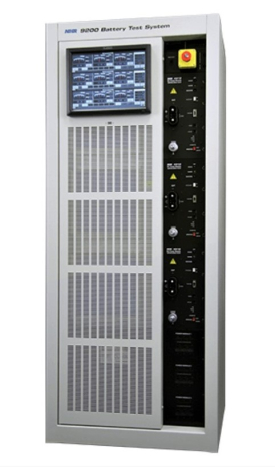

NH Research 9200-4912
Battery Tester, 120V, 200A, 8kW Source/12kW - 144kW Discharge

Download Product Datasheet

Available Option Configurations

Config-02

• 480 - 480VAC 3-Phase Input
• 36 - Three Channels (Parallel up to 36kW)
• Available for Rental    GET QUOTE

Product Overview

RENT NH RESEARCH 9200-4912 BATTERY TESTER (Call for Availability)

The NH Research (NHR) 9200-4912 is an expandable Battery Module/Pack Test System that includes automated characterization, power cycling and life-cycle testing of battery modules and packs. It has a highly flexible tester-per-channel design, built-in digital measurements, and three test system options including a Touch-Panel interface.

Features and Specifications of the NH Research 9200-4912  Battery Tester include:

Features of the  NHR 9200-4912  include:

• Best configuration capability
• Custom waveform/profile generation
• Microsecond voltage, current and mode transition times
• Built-in digital measurements with charting and scope displays
• 3 test system control options including a Touch-Panel interface
• Expandable from 12 to 252 kW with 40, 120 or 600 V bi-directional DC loads
• 87% efficiency of discharge power returned to AC mains
• Multiple safety layers to protect battery being tested
• Battery emulation and burn-in applications

Specifications of the NH Research 9200-4912  include:

• Program Capability:
• Operating states:
• Charge (source)
• Discharge (load)
• Standby
• Battery
• Charge/Discharge modes:
• Constant-voltage (CV)
• Current (CC)
• Power (CP)
• Resistance (CR)
• Charging envelope:  0 - 120V, 8kW, 200A
• Discharging envelope:  4 - 120V, 12kW, 200A
• Slew rate:  0.033V/S - 120 kV/S, 0.055A - 200kA/S
• Current charge time:  < 5mS
• Current reverse time:  < 10mS
• Parallelability:  Synchronous control for up to 12 channels (144kW)
• Macro Test Profiles:
• Development source:  Touch-Panel, Import from Excel or User's System Controller
• Maximum steps:  1000
• Minimum time delay:  5QuS
• Maximum step delay:  1 mS - 7 days
• Programming:
• Voltage:
• Range:  0-120V
• Accuracy:  0.1% + 0.1%
• Resolution:  0.005%
• Current:
• Range:  ± 200A
• Accuracy:  0.2% + 0.2%
• Resolution:  0.005%
• Power:
• Range:  ± 12KW
• Accuracy:  0.4% + 0.4%
• Resolution:  0.005%
• Resistance:
• Range:  0 - 100Ω
• Accuracy:  2%
• Resolution:  0.005%
• Slew rate:
• Voltage:  0.034V/s - 240V/ms
• Current:  0.55A/s - 1000A/ms
• Resistance:  0.028Ω/s - 100Ω/ms
• Power:  0.002W/s - 8kW/ms
• Test measurement (4-Wire):
• Voltage, DC average:
• Range:  0 - 120V
• Accuracy:  0.05% + 0.05%
• Resolution:  0.005%
• Current, DC average, Amp-Hr:
• Range:  0 - 200A
• Accuracy:  0.1% + 0.1%
• Resolution:  0.005%
• Power, Ah, kWh:
• Range:  ± 12KW
• Accuracy:  0.4% + 0.4%
• Resolution:  0.005%
• Time:
• Range:  1ms - 1Yr
• Accuracy:  0.1%
• Resolution:  0.005%
• Control:
• Local user interface:  Touch-Panel with graphic meters and controls plus Macro development/execution screens
• Ext. system communication:  LAN (Ethernet)
• Drivers (Win XP or Win 7):  LabVIEW, IVI-COM, IVI-C
• Analog current monitor:  0 to +10V charge/0 to -10V discharge
• Analog voltage monitor:  0 to +10V full scale voltage
• Safety:
• Isolation AC input:  1000V AC to DC output / 1000V AC input to chassis
• Isolation UUT input:  1000 V UUT to chassis
• Programmable safety limits: Over-Voltage (OV) / Under-Voltage (UV), Over-Current (OC), Over-Power (OP)
• Internal protection: Over/Under-Voltage, Over-Current, Over-Power, Internal Over-Tempurature
• Interlocks:  External user input, emergency stop, and rear service door
• Watchdog timer:  Continuously monitors control communications
