Chroma 61504
AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase

Power Supplies >> AC Power Sources, up to 3kVA >> AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase
Rent Used Test Equipment
Manufacturer: Chroma
Model: 61504

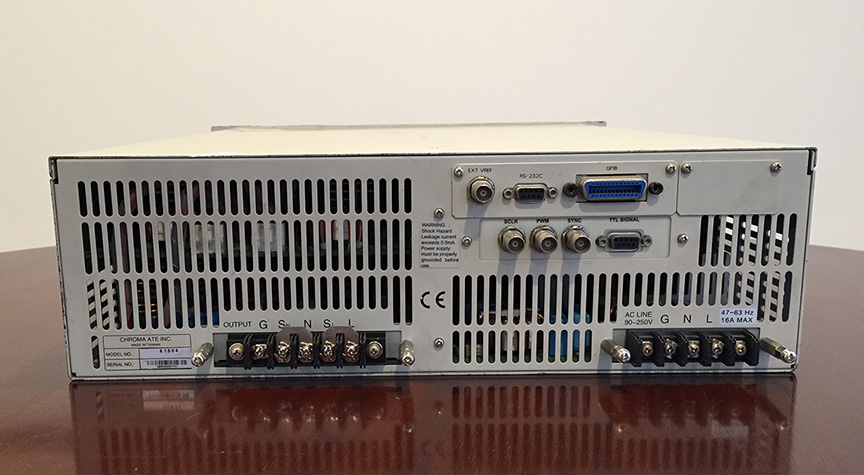

Chroma 61504 AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase 2 Chroma 61504 AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase Video CLICK TO ENLARGE Chroma 61504 AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase

Electronic Test and Measurement Equipment

Chroma 61504 AC Source, 0 to 300V, 15 to 1kHz, 2kVA, 1 Phase Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • A615001 - GPIB/RS232 Interface
  • In Stock!    GET QUOTE


  • No Options Included
  • In Stock!    GET QUOTE

Product Overview

RENT CHROMA 61504 AC Power Source


    Using the advanced DSP technology, the Chroma 61504 AC power source is not only a power source but also a powerful analyzer. It is able to provide the highest power density by its superior PWM mode design and the incorporated power factor correction function. The AC+DC modes extend the applications not only pure AC voltage but also DC component for testing DC offset in laboratory. These features make the 61504 AC power source ideal for commercial, power electronics, avionics, military and regulation test applications.

    The Chroma 61504 series AC source is able to provide precision and transient voltage waveform as well as measurements such as RMS voltage, RMS current, true power, power factor, current crest factor and up to 40 orders of current harmonic components. With the versatile programmable voltage functions and easy-use operation software, the 61504 AC source enables users to perform both pre-compliance tests and compliance testing for IEC 61000-4-11/13/14/28 (and more). The Chroma 61504 is capable of delivering up to 6 times of peak current compared to its maximum rated current that makes it ideal for inrush current test.


Specifications of the CHROMA 61504 AC Power Source includes:

AC Power 2000VA
Voltage Low/High 0-150V/0-300V
Frequency 15-1000Hz
Peak Current Low/High 96A/48A
Power Factor 0.98 min


See Datasheet for Full Specifications


Click to see all the models in this series
