Pacific Power Source 3060-MS
AC Power Source, 62.5kVA, 50kW, 3 Ph.

Power Supplies >> AC Power Sources, More than 10kVA >> AC Power Source, 62.5kVA, 50kW, 3 Ph.
Rent Used Test Equipment
Manufacturer: Pacific Power Source
Model: 3060-MS

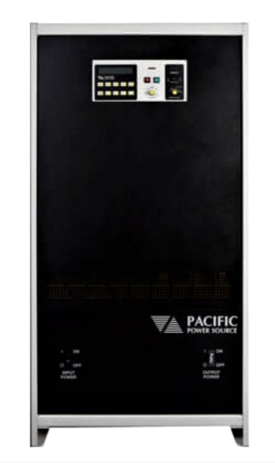

Pacific Power Source 3060-MS AC Power Source, 62.5kVA, 50kW, 3 Ph.

Electronic Test and Measurement Equipment

Pacific Power Source 3060-MS AC Power Source, 62.5kVA, 50kW, 3 Ph. Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT Pacific Power 3060-MS AC Power Source (Call for availability)



    The Pacific Power 3060-MS is a high power solid state frequency converter consisting of one 62.5 kVA, 3 phase AC Power Source. It offers reliable voltage and frequency conversion and power monitoring for facilities power and/or AC power test applications. Input AC power is rectified to DC by a special input power supply section. This minimizes input current distortion and prevents the load power factor from reflecting back onto the utility line. The DC is then converted back to AC by a high frequency, solid state, pulse-width modulated switchmode inverter under the control of a highly stable digital oscillator. The result is exceptional system performance with maximum reliability.

    Testing products for immunity to voltage dips and variations and/or frequency fluctuation is made easy with the Pacific Power 3060-MS. With its available range of high voltage output range options, voltages as high as 600V L-L can be supported for transformer testing. 350 Amps of Pulse Current per phase is delivered by each 3060-MS for driving non-linear loads. This eliminates the need to oversize facility power as is common for rotary or low quality PWM power systems. Variable Frequency range of 47–500 Hz, as well as switch selectable fixed frequency operation of 50, 60 or 400 Hz, is standard on every Pacific Power 3060-MS AC power source. For AC power test and development applications, the external SCU/UPC-32 programmable controller may be added as an option.



Specifications of the Pacific Power 3060-MS AC Power Source includes:

AC Power 62.5kVA
Voltage Low/High 0-150V/0-300V
Frequency 47-500Hz
Max Current Single/3-Phase 144A/48A
Power Factor 0 to unity



See Datasheet for Full Specifications
