Agilent E5072A, Keysight E5072A, HP E5072A
Network Analyzer, 30 kHz to 4.5 GHz or 8.5 GHz

Network Analyzers >> More than 6 GHz, up to 20 GHz >> Network Analyzer, 30 kHz to 4.5 GHz or 8.5 GHz
Rent Used Test Equipment
Manufacturer: Keysight / Agilent / HP
Model: E5072A

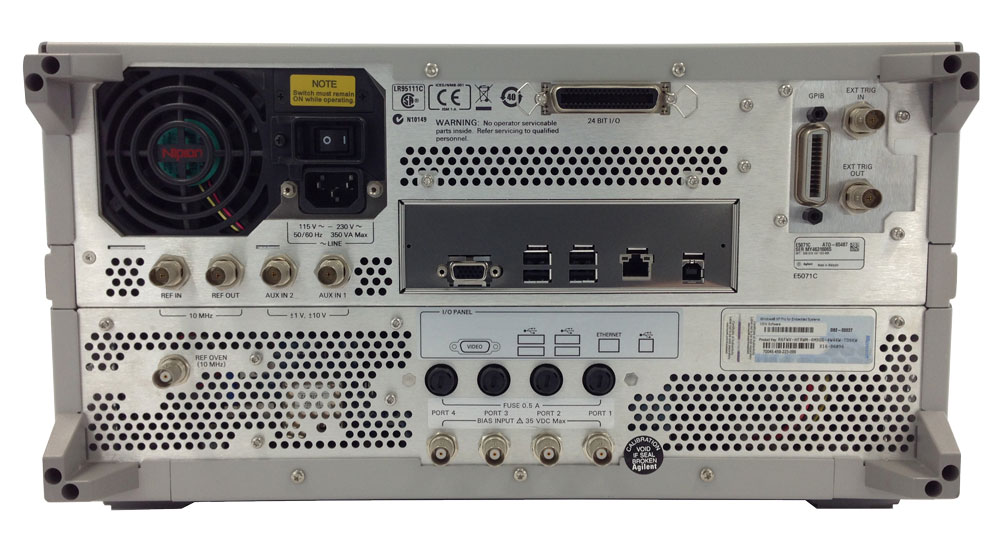

CLICK TO ENLARGE Keysight / Agilent E5072A Network Analyzer, 30 kHz to 4.5 GHz or 8.5 GHz

Electronic Test and Measurement Equipment

Keysight / Agilent E5072A Network Analyzer, 30 kHz to 4.5 GHz or 8.5 GHz Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

The Keysight E5072A Agilent ENA Series Network Analyzer is a new addition to the ENA series providing a more flexible platform with enhanced capabilities to meet your evolving measurement needs for a wide range of applications. The improved performance on the Keysight E5072A (Agilent) exceeds what is possible with the current RF network analyzers. The Agilent E5072A with a configurable test set provides access to the signal paths between the internal source, receivers, bridges, and the analyzer’s test ports; which improves instrument sensitivity as well as the ability to add components or peripherals for a variety of applications.

The Keysight E5072A delivers new standards in versatility, speed and accuracy, and is suitable for full performance characterization of passive and active components, such as antennas, high-rejection filters, and high-power amplifiers. The E5072A with power level calibration techniques is a cost-effective & powerful tool for RF amplifier measurements. Its receiver leveling function with receiver measurements helps you achieve accurate absolute power level for characterization of power-dependent active devices in nonlinear operation.

Features and Specifications of the Keysight E5072A (Agilent) ENA Series Network Analyzer include:

  • 2-port, 30 kHz to 4.5 GHz & 8.5 GHz
  • Configurable test set (direct receiver access)
  • High output power (up to +20 dBm)
  • Extended dynamic range (up to 151 dB)
  • Fast measurement speed: 7 msec at full 2-port cal, 401 points
  • Low trace noise: 0.004 dB rms at 70 kHz IFBW
  • High temperature stability: 0.005 dB/°C
  • High throughput and user Interface customization with built-in VBA
  • Compatibility with E5071C and 8753 series
