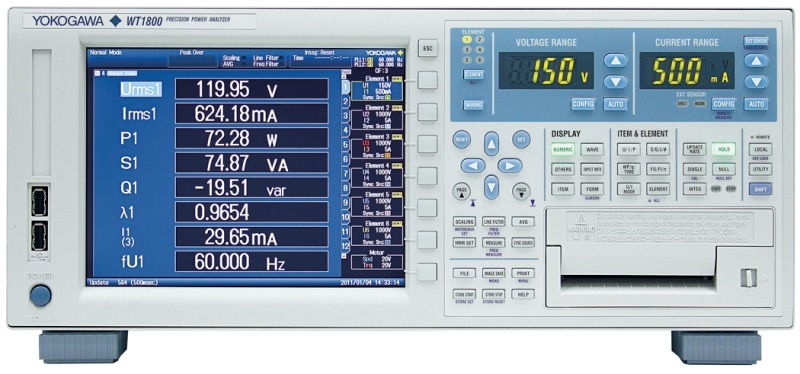

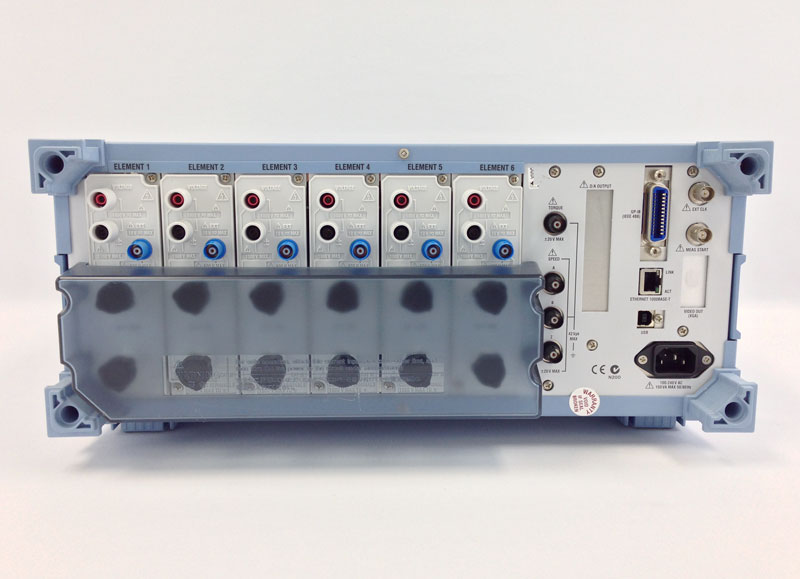

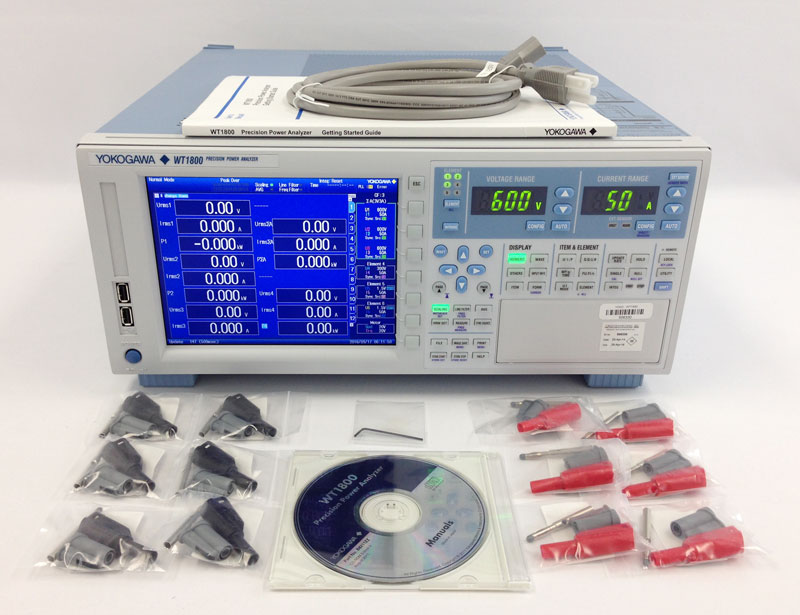

Yokogawa WT1800
Power Analyzer

CLICK TO ENLARGE

Download Product Datasheet

Available Option Configurations

Config-05

• DA - 20 Channel D-A Output
• DT - Delta Computation
• EX6 - External Sensor Input for Six-Element Version
• FQ - Add-on Frequency Measurement
• G6 - Dual Harmonic Measurement
• HS - High Speed Data Capturing
• MTR - Motor Evaluation Function
• WT1806-06 - Six Elements, 50A 50A 50A 50A 50A 50A
• MSRP: $30,560 |Used starting at: $16,800

• In Stock!    GET QUOTE

Config-16

• G5 - Harmonic Measurement
• WT1806-60 - Six Elements, 5A 5A 5A 5A 5A 5A
• MSRP: $20,305
• Available for Rental    GET QUOTE

Config-17

• G5 - Harmonic Measurement
• WT1806-42 - Six Elements, 5A 5A 5A 5A 50A 50A
• MSRP: $20,305
• Available for Rental    GET QUOTE

Product Overview

RENT YOKOGAWA WT1800 Power Analyzer (call for availability)

The Yokogawa WT1800 Power Analyzer is the ideal measurement solution for testing Product Efficiency, and the design of Inverters, Motor Drives, Lighting Systems, Uninterruptible Power Supplies, Aircraft Power Systems, Transformer Testing and other power conversion devices.

Features and Specifications of the Yokogawa WT1800 Power Analyzer include:

• Voltage and current frequency bandwidth 5 MHz (-3 dB typical)
  • At over 5-fold wider than the previous model Yokogawa WT1600, the WT1800 offers a wider range, frequency required for faster switching frequencies, and is capable of more correctly capturing fast switching signals.
• Reduction of low power-factor error to 0.1% of apparent power
  • A power-factor error is one of the important elements to ensure high-accuracy measurements even at a low power factor. The WT1800 has achieved a power-factor error (0.1%) that is 2/3 of the previous model WT1600, in addition to a high basic power accuracy of ±0.1%.
• Wide voltage and current range allowing direct input
  • Direct input of measurement signals makes it possible to measure very small current that can hardly be measured with a current sensor. The WT1800 provides a direct input voltage range from 1.5 V to 1000 V (12 ranges) and a direct input current range from 10 mA to 5 A (9 ranges) or from 1 A to 50 A (6 ranges).
• 0.1 Hz low-speed signal power measurement and max. 50 ms high-speed data collection
  • The frequency lower limit has been reduced to 0.1 Hz from the previous 0.5 Hz (5-fold lower than the previous model WT1600) to meet the requirement for power measurements at a low speed. Furthermore, high-speed data collection at a data update rate of up to 50 ms has been inherited. In addition to normal measurement data, up to the 500th order harmonic data can be measured and saved simultaneously. The data update rate can be selected from nine options from 50 ms to 20 s. *Harmonic measurement at the 50 ms data update rate is possible up to the 100th order.
• Particular voltage and current range selectable
  • Wide voltage and current input ranges have the advantage of extending the measurement application range. However, the downside is that the response time of the auto range tends to slow down. A range configuration function solves this problem. Since only the selected range (effective measurement range) can be used, the range can be changed up or down more quickly.
• Support for Energy Conservation Technologies and Sustainable Energy Development
  • Dual Harmonic Measurement: The perspective of the efficient use of energy is boosting demand for inverters to convert 50Hz or 60 Hz AC power to DC power, grid connection controllers to control reverse power flow occurring due to excess power, and battery chargers/dischargers. The WT1800 is capable of simultaneously measuring the harmonic distortion of the input and output current of these devices. Challenging the common wisdom that "harmonic measurement is limited to a single line," the WT1800 is capable of performing two-line simultaneous harmonic measurements. The WT1800 is also capable of measuring up to the 500th order harmonic even at high fundamental frequencies such as a 400 Hz frequency.
  • Customize Display Screen: The perspective of the efficient use of energy is boosting demand for inverters to convert 50Hz or 60 Hz AC power to DC power, grid connection controllers to control reverse power flow occurring due to excess power, and battery chargers/dischargers. The WT1800 is capable of simultaneously measuring the harmonic distortion of the input and output current of these devices. Challenging the common wisdom that "harmonic measurement is limited to a single line," the WT1800 is capable of performing two-line simultaneous harmonic measurements. The WT1800 is also capable of measuring up to the 500th order harmonic even at high fundamental frequencies such as a 400 Hz frequency.

Specifications of the Yokogawa WT1800 Power Analyzer include:

• Basic Power Accuracy: ±0.1%
• DC Power Accuracy: ±0.05%
• Voltage / Current Bandwidth: 5 MHz^*1 (-3dB Typical)
  • *1: Excluding direct current input with the 50 A input element
• Sampling Rate: 2 MS/s (16-bit)
• Input Elements: Up to 6
  • 5A or 50A elements
• Current Measurement: 100 µA to 55A

The Yokogawa WT1806-06 power analyzer is part of the WT1800 series and has six 50A elements with USB, GPIB and Ethernet Interface.

Click Here To See Other Yokogawa Power Analyzers
