Product Overview

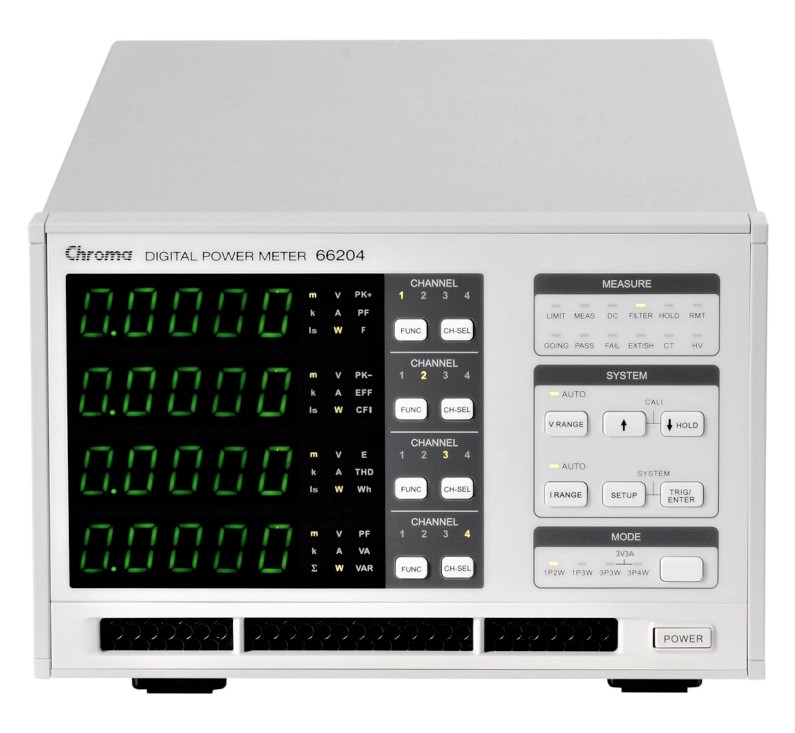

CHROMA 66204

The Chroma 66204 Power Meter is designed for both single-phase and multiple phase measurements of AC power signals and related parameters common to most electronic products. Instead of traditional analog measurement circuits the 66204 Digital Power Meter uses state-of-the-art DSP digitizing technology. The internal 16 bits analog/digital converters with sampling rates of up to 200KHz provide both high speed and high accuracy measurements which is unprecedented within the industry for this class of power meters current on the market.

The wiring mode function of the 66204 allows the user to take accurate power measurements for various wiring modes as well as providing accurate standard power measurements common for most electrical devices.

Each channel of the 66204 has the ability to provide independent measurements; therefore the meter is suitable for multi-point measurement applications such as PV inverter testing. Instruments are designed for measuring DC input parameters as well as three phase AC readings on the output side. The overall efficiency for the PV inverter can easily be obtained by built-in functions. In order to meet high voltage applications (up to 1200Vrms) Chroma offers an HV option kit.

Features of the Chroma 66204 include:

• Voltage Range : 15/30/60/150/300/600 Vrms
• Current Range : 0.005/0.02/0.05/0.2/0.5/2/5/20 Arms
• Frequency Range : DC, 15Hz~10kHz
• Embedded high speed DSP, 16 bits Analog/Digital converters
• Half rack size, 4 input modules design (66204)
• Support different wiring configuration power measurement (1P2W/1P3W/3P3W/3P4W)
• Support external shunt and CT for higher current measurement application
• 5 mA minimum current range & 0.1mW power resolution
• Meets ENERGY STAR / IEC 62301 /ErP measurement requirements
• Accumulated energy methods for unstable power measurement
• User-define criteria provides automatic PASS/FAIL indications
• Dual current shunt design provides high accuracy over a wide current range
• THD and user-specify order distortion measurement
• Inrush current and energy measurement
• Voltage/ Current harmonics measurement up to 50 orders
• Performs up to 4 simultaneous power measurements. The meter is also designed to comply with power measurement requirements in accordance to many international standards such as Energy Star/EN 50564/IEC 62301/ ErP.
