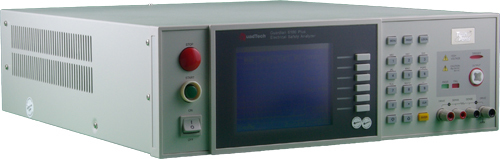

The Quadtech Guardian 6100 Plus Hipot Tester and Electrical Safety Analyzer is capable of performing all of the usual and rigourous safety tests required for production of electronic medical products as well as providing thorough leakage testing and monitoring power consumption. This instrument is easily programmable, has vast internal memory, and includes a distinctive "Pause Feature."
The Guardian 6100 Plus Electrical Safety Analyzer performs AC and DC hi-pot, insulation resistance, ground bond and leakage current measurements for a complete electrical safety testing solution. It has built-in leakage current scanner which offers up to 20A input current capability for functional run testing. Further, the connections for earth, enclosure, patient and line leakage current testing to meet IEC 60601-1 compliance requirements.
Innovative features of the 6100 Plus include:
Features functional & safety testing in one box
Simultaneous Hipot and Ground Bond Testing
Seamlessly integrated into an ATE environment
High voltage / high current scanner options for multi-point testing
Archive test setups, data and results with CaptivATE Automation Software
Specifications of the Quadtech Guardian 6100 Plus include:
Programmable AC Hipot Voltage 50 to 5000 VAC, Output Current to 40 mA
Programmable DC Hipot Voltage 50 to 6000 VDC, Output Current to 12 mA
IR Measurements from 100 kohm to 50 Gohm, Test Voltage 50 to 1000 VDC
Programmable Ground Bond Current from 1 to 40 A, R Measurement to 510mohms
Twin-Port - Simultaneous Hipot and Ground Bond
Built-in 20 A Hipot / Line Leakage Scanner
Functional Run Testing: Voltage (to 300 V), Current (to 20 A) or Power (to 4400 VA)
Earth, Enclosure, Patient & Patient Auxiliary Leakage Current Measurements
Open / Short Circuit Detection to ensure DUT is connected
Pause Mode Allows the Operator to Change Device Connection and Continue
Programmable Hi / Lo Limits for Pass / Fail Testing
Programmable Ramp, Dwell and Test Times
Perform Multiple Tests in Sequence with Store / Recall of 100 Setups, 50 Steps Each
Front Panel Lockout Prevents Changes to the Test Setup
Automatic Offset to Zero Out Residual Current
Fast HV Cutoff and Quick Discharge of Device Under Test
RS-232 and I/O Interfaces Included Standard
IEEE-488 and Printer Interfaces Optional
Built In Operator Prompted Software Calibration Routine
Front and Rear Panel Output Connections
40 A Ground Bond Testing with Optional Transformer
CaptivATE Automation Software for GUARDIAN 6100 Plus (Optional)
