Product Overview

Rent Amplifier Research 5000A225 Amplifier (call for availability)

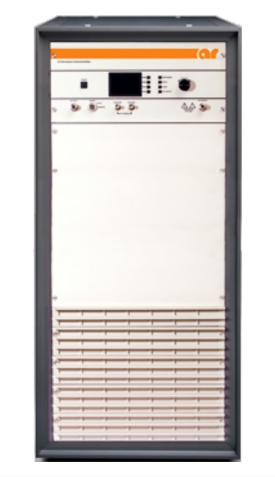

The Amplifier Research 5000A225 is a self-contained, air-cooled, broadband, completely solid state amplifier designed for applications where instantaneous bandwidth and high gain are required. Push-pull MOSFET circuitry is utilized in all high power stages in the interest of lowering distortion and improving stability.

The Amplifier Research 5000A225 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The DCP uses a 3¾-inch diagonal graphic display, menu assigned softkeys and a single rotary knob to offer extensive control and status reporting capability. The display provides operational presentation of Forward Power and Reflected Power plus control status and reports of internal amplifier status. Special features include a gain control, internal automatic level control (ALC) with front panel control of the ALC threshold and RF output level protection.

All amplifier control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hard wire and fiber optic and USB. The bus interface connectors are located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier. High efficiency universal input, power factor corrected switching power supplies provides DC to all internal sub-assemblies.

Housed in a stylish, contemporary enclosure, the Amplifier Research 5000A225 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, particle accelerators, plasma generation, communications and use as a driver for higher power amplifiers. The Amplifier Research 5000A225M6 enclosure includes four 6-inch casters for ease of mobility.

Features and Specifications of the Amplifier Research 5000A225 Amplifier Include:

RATED OUTPUT POWER: 5000 watts, 10 kHz–50 MHz

5000–4000 watts, 50 MHz–200 MHz
(derating slope from 50 MHz–200MHz) 6.66 W/MHz
3500 watts, 200–225 MHz

INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum

POWER OUTPUT @ 1 dB COMPRESSION:3400 watts, 10 kHz–100 MHz
3400–2500 watts, 100 MHz–200 MHz
(derating slope of 9.0 watts/MHz)
2000 watts, 200–225 MHz

FREQUENCY RESPONSE: 10 kH
z–225 MHz instantaneously

GAIN (at maximum setting): 67 dB minimum

FLATNESS: ± 1.5 dB maximum
± 0.8 dB with internal leveling

GAIN ADJUSTMENT (continuous range): 20 dB minimum

INPUT IMPEDANCE: 50 ohms, VSWR 1.5:1 maximum

OUTPUT IMPEDANCE: 50 ohms, nominal

MISMATCH TOLERANCE: 100% rated power without foldback up to 6.0:1
mismatch above which may limit to 2500 watts reflected power,
from 10 kHz to 50 MHz. Limited to 2000
watts reflected power from 50 MHz to 225 MHz.

MODULATION CAPABILITY: Faithfully reproduces AM, FM or
Pulse modulation appearing on input signal.

HARMONIC DISTORTION: Minus 20 dBc maximum at 3000 watts power
output.

THIRD ORDER INTERCEPT POINT: 74 dBm typical

RF POWER DISPLAY: 0 - 7500 watts full scale

RF RISE/FALL TIME: 10 nanoseconds maximum

PRIMARY POWER (User must specify): 187-264 VAC Delta (4 wire), Wye
compatible 365-528 VAC, Wye (5 wire) 47-63 Hz,
3-phase 20,000 watts maximum at .95 P.F. typical
