MPI Thermal TA-5000A
Temperature Forcing Test System, -80C to +225C

Temperature and Humidity >> Temperature and Humidity Chambers & Systems >> Temperature Forcing Test System, -80C to +225C
Rent Used Test Equipment
Manufacturer: MPI Thermal
Model: TA-5000A

MPI Thermal TA-5000A Temperature Forcing Test System, -80C to +225C

Electronic Test and Measurement Equipment

MPI Thermal TA-5000A Temperature Forcing Test System, -80C to +225C Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-02

  • INSULATION KIT - Insulation Kit
  • SHROUD KIT - Shroud Kit
  • MSRP: $34,900 | Available for Rental    GET QUOTE

Product Overview

RENT MPI TA-5000A TEMPERATURE FORCE SYSTEM

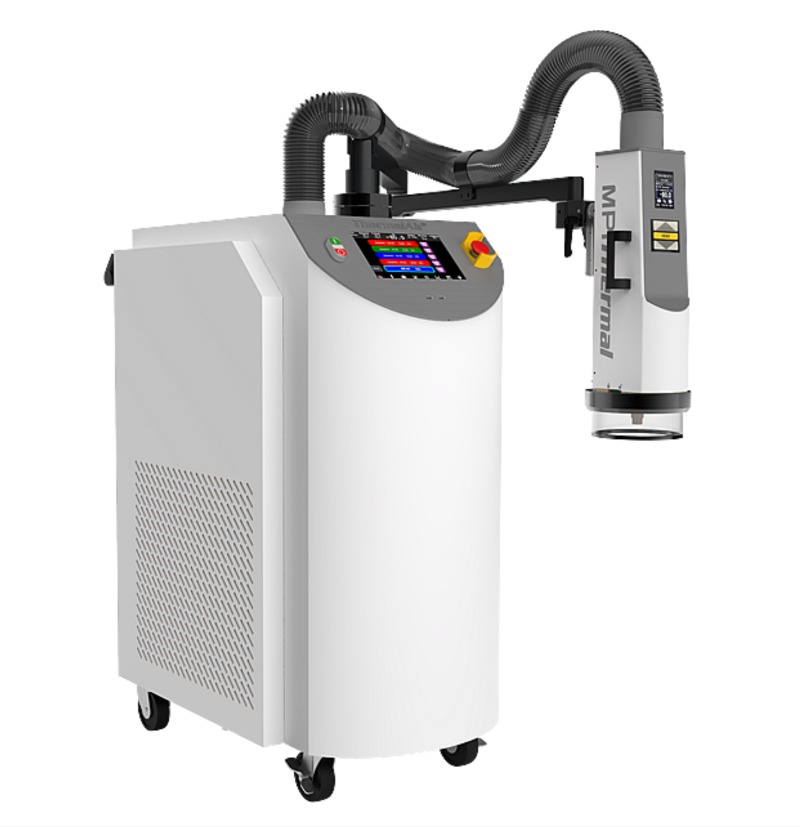

The MPI ThermalAir TA-5000A is a compact, portable benchtop environmental heating and cooling temperature forcing air stream system. Instead of taking your parts that need temperature conditioning to an large oven or large environmental chamber, our thermal test system allows you to perform your thermal test temperature profiling right where you need it – at your test bench, on your production floor or in your test laboratory.

The ThermalAir TA-5000A Temperature Forcing System with a wide range of temperature capabilities. -80°C to +225°C environmental test. The TA-5000A is used for temperature testing in engineering product development test labs and production test floors for semiconductor IC devices and all kinds of electronic – non-electronic components and other parts and assemblies.

The unique architecture of the ThermalAir TA-5000A features unprecedented performance while saving up to 50% on electricity costs.

The MPI ThermalAir TA-5000A has a front panel display and a thermal head display. The thermal head color touch screen gives the user the ability to set temperature parameters and monitor all system operations at the test site location.

Features and benefits of the TA-5000A include:

  • Ultra Cold Temperatures maintained at 50Hz & 60Hz
  • Dual Touch Screens Front Panel & Thermal Head
  • Plug-in anywhere from 200 to 250VAC, 1Ø
  • ECO Smart DC system for up to 50% energy saving
  • No voltage configuration to use at different locations
  • Versatile Boom & Stand – Extended reach standard
  • SSD for thermal file management and data logging
  • Control Heated dry air purge for frost free operation
  • One touch Temp Cycle, Ramp, Soak and Dwell
  • Ultra low audible noise for quiet engineering lab use (DC Chiller)

Specifications of the MPI TA-5000A Temperature System include:

  • Airflow: High capacity 10 l/s (20 scfm) continuous airflow optimizes temperature transition rate and throughput.
  • Typical Temperature transition rate: -55° to +125°C: approximately 10 seconds and +125° to -55°C: approximately 10 seconds
  • Temperature Control: Environment Air or External DUT sensing directly at the DUT case to ±1.0°C
  • Temperature control Sensor Ports: Type T or Type K thermocouple, and 100 ohm RTD
  • Temperature set, display and resolution: ±0.1°C
  • Temperature Accuracy: 1.0°C ( calibrated to NIST standard)
  • Remote interface ports: Four: IEEE-488, RS232C, SOT/EOT/SFF, And Ethernet, 4 USB-Type A, 1 USB-Type B, VGA, LAN, PLUS
  • Auto Start Test & End of Test for automatic temperature cycling Hot-Cold-Amb. All this makes for simple control and service ability.
