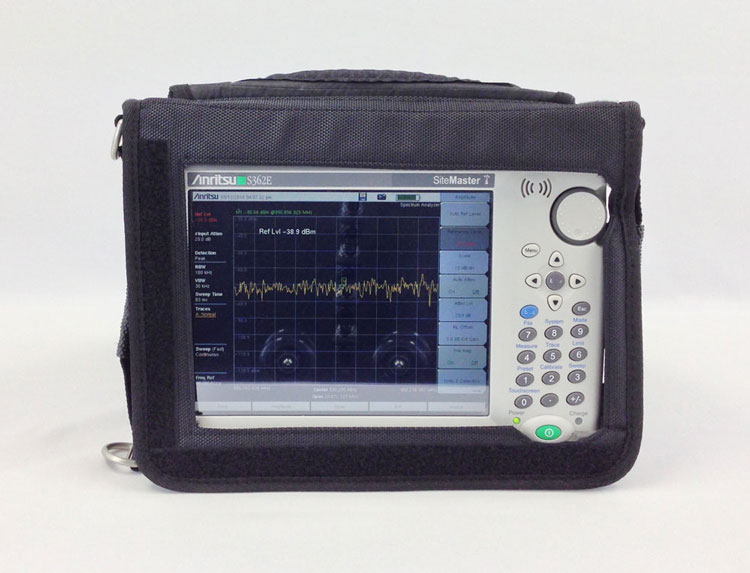

Anritsu S362E
Site Master Cable / Antenna Analyzer + Spectrum Analyzer, 6 GHz

CLICK TO ENLARGE

Download Product Datasheet

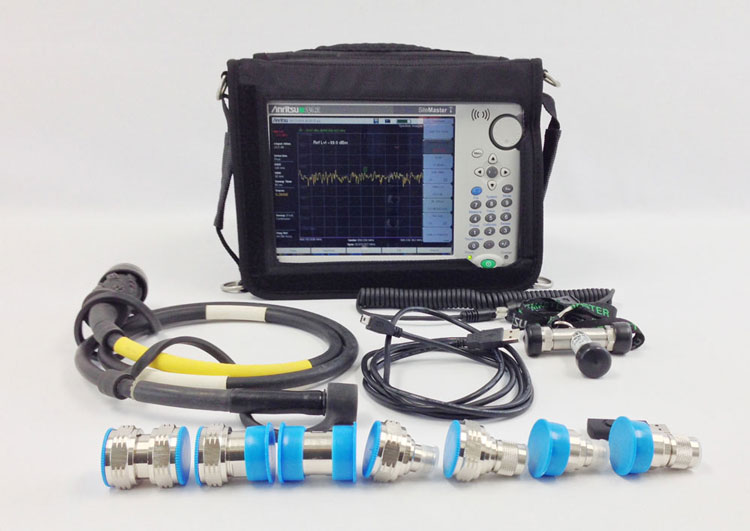

Available Option Configurations

Config-02

• DIN-ADAPT-KIT - DIN 7/16 Adapter Kit
• OSLN50-1 - Precision Open/Short/Load,N (m), 6GHz
• TUFFGRIP CABLE - Tuff Grip Cable, DC - 6 GHz, N(m) to N(f)
• MSRP: $24,053 | Available for Rental    GET QUOTE

Config-04

• 29 - Power Meter
• 19 - High Accuracy Power Meter
• 27 - Channel Scanner (For Model S362E)
• 10 - Bias Tee
• 21 - 2-Port Transmission Measurement
• 25 - Interference Analyzer (For Model S362E)
• 28 - CW Signal Generator
• 31 - GPS Receiver (includes GPS antenna)
• 431 - Coverage Mapping (Option 31 required)
• 509 - AM/FM/PM Analyzer (For Model S362E)
• 90 - Gated Sweep
• MSRP: $35,570 | Available for Rental    GET QUOTE

Config-06

• 29 - Power Meter
• 21 - 2-Port Transmission Measurement
• 10 - Bias Tee
• MSRP: $26,335 | Available for Rental    GET QUOTE

Product Overview

RENT ANRITSU S362E (call for availability)

The Anritsu S362E Site Master Handheld Cable and Antenna Analyzer + Spectrum Analyzer covers the 2 MHz to 6 GHz for Cable and Antenna Measurements and 9 kHz to 6 GHz for spectrum analysis measurements. It is the industry standard for installing, provisioning, maintaining, and troubleshooting wireless base station cable and antenna systems. Accurate, versatile, affordable, rugged and a true handheld at under 5 pounds (including battery), Site Master is ideally suited for field technicians of any experience level working with VHF, broadcasting, paging, cellular, PCS/GSM, 3G, 4G and ISM.

The S362E SiteMaster measurement capabilities include precision Return Loss/SWR, Cable Loss and power meter measurements. Frequency Domain Reflectometry (FDR) provides superior Distance to Fault (DTF) analysis to locate faults accurately. Patented RF interference rejection enables accurate, repeatable measurements in the presence of high RF activity. Data analysis software enables assessment of system trends, problems, and performance in addition to professional report generation.

1 ms/data Sweep Speed saves the technician time and enables easier identification of intermittent problems in real time. FlexCal broadband calibration allows troubleshooting cable and antenna systems without multiple calibrations and calibration setups. Built-In Worldwide Signal Standards eliminates the need to remember system frequencies and manually input the start and stop frequency values. Built-In Average Cable Loss eliminates the need to calculate a measured cable loss value. Built-In Power Meter Option measures the base station transmitter power accurately. The High Accuracy Power Meter (Option 19) provides true RMS measurements from 50 MHz to 6 GHz.

Data analysis software is included, along with a soft carrying case, rechargeable/field-replaceable battery, AC/DC power supply, 12V automobile cigarette lighter adapter and users guide.

Highlights of the Anritsu S362E include:

Cable and Antenna:

• Measurements: RL, VSWR, Cable Loss, DTF, Phase
• 2-port Transmission Measurement: High/Low Power
• Sweep Speed: 1 ms/data point, typical
• Display: Single or Dual Measurement Touchscreen
• Calibration: OSL, InstaCal™, and FlexCal™
• Bias Tee: 32 V internal

Spectrum and Interference Analyzer:

• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
• Dynamic Range: > 95 dB in 10 Hz RBW
• DANL: –152 dBm in 10 Hz RBW
• Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: < ± 50 ppb with GPS On

Functional highlights of the Anritsu S362E include:

• 4.5 hour battery operation time
• Store 2000 Traces internally
• Touchscreen keyboard
• Quick Name Matrix
• PIM Analyzer (S332E and S362E only)
• AM / FM / PM Analyzer
• High Accuracy Power Meter
• 4, 6, 8, 18, 26 GHz USB Sensors available
• On-Screen Interference Mapping
• On-Screen Coverage Mapping
• GPS tagging of saved traces
• USB & Optional Ethernet (Option 0411) for data transfer and instrument control
• Increase throughput by automating repetitive or operator intensive tasks via Ethernet or USB. Remote programming provided via Ethernet (Option 0411)
• < 5 minute warm-up time
• E-Learning Training
• Certified Line Sweep Training
• Master Software Tools™
• Line Sweep Tools™
• easyTest Tools™
