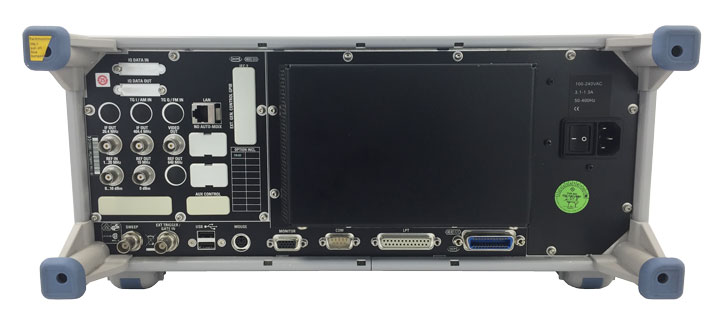

Rohde & Schwarz FSU67
Spectrum Analyzer, 20 Hz - 67 GHz

CLICK TO ENLARGE

Download Product Datasheet

Product Overview

The Rohde & Schwarz R&S FSU67 Spectrum Analyzer surpasses the proven excellent RF data of the R&S FSE and R&S FSIQ series of Spectrum Analyzers. Measurements calling for an extremely wide dynamic range are simpler, faster and more reliable – in development, quality management and production environments. The R&S FSU67 can rightly be called the new reference in spectrum analysis, with an unprecedented dynamic range:

• TOI >20 dBm, typ. +25 dBm
• 1 dB compression (0 dB RF attenuation): +13 dBm
• Displayed average noise level: –158 dBm (1 Hz bandwidth)
• 77 dB ACLR typ. for 3GPP, 84 dB typ. with noise correction
• HSOI 55 dBm typ.
• Phase noise: –160 dBc/Hz typ. at 10 MHz carrier offset

These characteristics make it easy to find small spurious signals even in the presence of strong carriers (e.g. at a base station).

For 3GPP adjacent-channel power measurements, a figure of 84 dB ACLR allows good adjacent-channel power (ACP) ratios to be verified and demonstrated very simply and with high accuracy. Build your node B better than others, and prove it.

The high harmonic second-order intercept point means optimum dynamic range for multichannel cable TV measurements.

The R&S FSU series of spectrum analyzers launched with the most abundant functionality available on the spectrum analyzer market. All major functions come straight away in the basic unit and include:

• Highly selective digital filters from 10 Hz to 100 kHz
• Fast FFT filters from 1 Hz to 30 kHz
• Channel filters from 100 Hz to 5 MHz
• RRC filters
• 1 Hz to 50 MHz resolution bandwidth
• QP detector and EMI bandwidths 200 Hz, 9 kHz, 120 kHz
• 2.5 ms sweep time in frequency domain
• 1 µs sweep time in time domain
• Number of measurement points/trace selectable between 155 and 10001
• Time-selective spectrum analysis with gating function
• GPIB interface, IEEE 488.2
• RS-232-C serial interface, 9-pin SUB-D connector
• VGA output, 15-pin SUB-D
• PC-compatible screenshots on diskette or hard disk
• Up to 20 measurements/s in manual mode
• Up to 30 measurements/s on GPIB interface
• SCPI-compatible GPIB command set
• R&S FSE R&S FSIQ compatible GPIB command set
• Fast ACP measurement in time domain
• Statistical signal analysis with CCDF function
• RMS detector of 100 dB dynamic range
• Transducer factor for correcting antenna or cable frequency responses
• 2-year calibration cycle
• External reference from 1 MHz to 20 MHz in 1 Hz steps
• GGSM/EDGE modulation measurements (with option R&S FS-K5)

Features and Benefits of the R&S FSU67 include:

• Frequency Ranges: 20 Hz to 67 GHz
• Resolution Bandwidth: 10 Hz to 50 MHz
• Complete Suite of Detectors
• Flexible Selection of Resolution Filter Characteristics
• Demodulation of GSM/EDGE, W-CDMA, TD-SCDMA, cdma2000, 1xEVDO, and 1xEVDV demodulation
• LAN connectivity standard

Applications for the Rohde & Schwarz FSU67 Spectrum Analyzer include:

• General Purpose Spectrum Analysis
• Legacy Spectrum Analyzer Replacement
• 2.5G and 3G Component Development and Production
• Amplifier Production Test
• Metrology and Calibration Lab Applications
