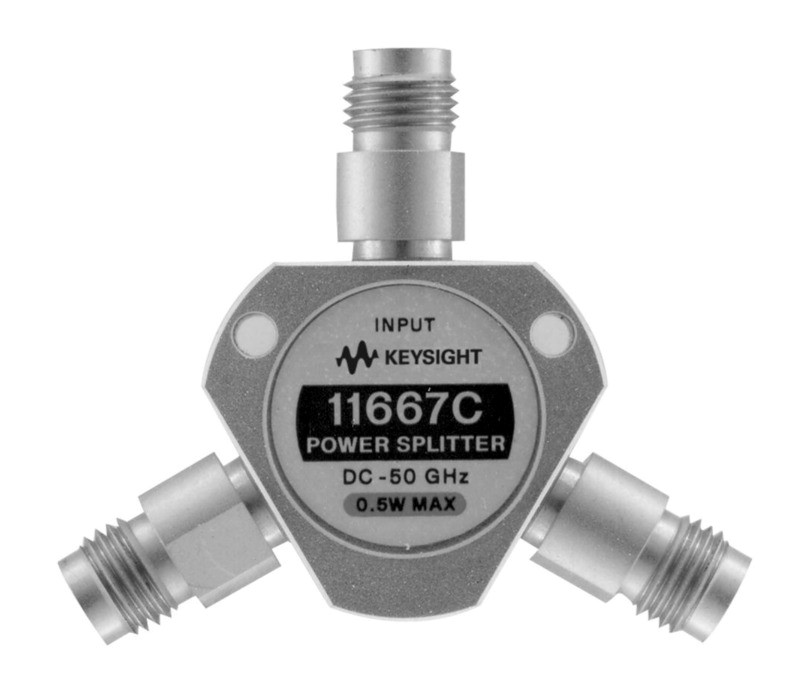

Agilent 11667C, Keysight 11667C, HP 11667C
Power Splitter, DC to 50 GHz
RF and Microwave Components >> RF and Microwave Components >> Power Splitter, DC to 50 GHz
Manufacturer: Keysight / Agilent / HP
Model: 11667C
Model: 11667C
|
Download Product Datasheet
Available Option Configurations
Config-01
- No Options Included
MSRP: $3,306- Available for Rental GET QUOTE
Config-01
Product Overview
AGILENT 11667C
The Agilent 11667C power splitter is recommended when making wideband ratio measurements using an Agilent 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 50 GHz allows wideband measurements to be made with a minimum of uncertainty.
Specifications of the Agilent 11667C
-
Frequency range: dc to 50 GHz
-
Equivalent output SWR: 1.65
-
Maximum input power: 0.5 W
-
Insertion loss: 8.5 dB
-
Tracking between two ports: 0.40dB
