NH Research 9510-100
Regenerative Power Grid Simulator, 100kW

Power Supplies >> Grid Simulators >> Regenerative Power Grid Simulator, 100kW
Rent Used Test Equipment
Manufacturer: NH Research
Model: 9510-100

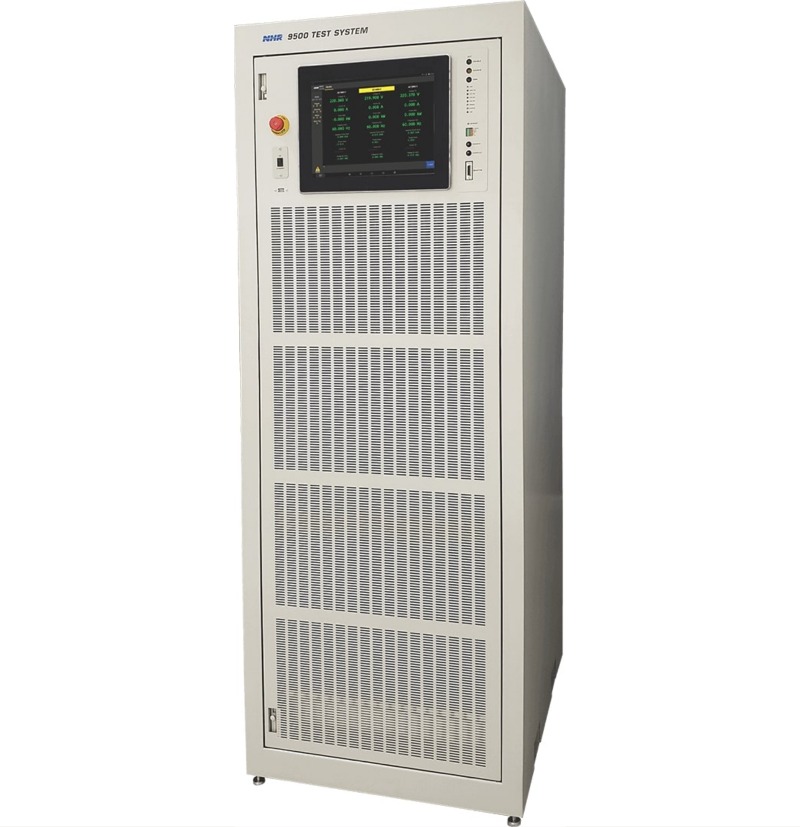

NH Research 9510-100 Regenerative Power Grid Simulator, 100kW

Electronic Test and Measurement Equipment

NH Research 9510-100 Regenerative Power Grid Simulator, 100kW Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • No Options Included
  • Available for Rental    GET QUOTE

Product Overview

RENT NH RESEARCH 9510-100 Regenerative Power Grid Simulator (Call for Availability)


The NH Research 9510-100 Regenerative Grid Simulator is the industry leading solution for testing and verification of high power grid-tied applications in compliance with regulatory testing standards, worldwide. The 9510-100 has a built-in power amplifier mode for Power Hardware in the Loop (PHIL) applications providing further testing and simulation capability ideal for research labs. Programmable frequency is between 30Hz and 120Hz. The output can be AC, DC or AC+DC and the AC can be single, split or 3-Phase. With this wide range of power, frequency, and phase configuration options, the 9510 provides the ultimate flexibility to test the broadest selection of grid-tied products.

The NH Research 9510-100 Grid Simulator is able to directly simulate common power line disturbances, such as LVRT test patterns, through a combination of macros and user-definable wave shapes. User-definable wave shapes extend this capability by permitting the generation of outputs including transient anomalies, voltage harmonics, or any other irregularity which can be drawn as a single cycle. The 9510-100 additionally works like a Power Analyzer providing measurement features including true power (W), reactive power (VARS), apparent power (VA), crest factor (CF), power factor (PF), and many other measurements. When even deeper analysis is required, an internal 125kSample/second digitizer may be used to capture the voltage and current waveforms.


Specifications for the NH RESEARCH 9510-100 Regenerative Power Grid Simulator Include:

Power, Max (1Φ or 3Φ) 100kW
Current Ranges (RMS per Φ) 50, 225A
Frequency 30 – 120Hz
Voltage Ranges 10 - 175, 10 - 350VRMS L-N


See Datasheet for full specifications
