Agilent N6784A, Keysight N6784A, HP N6784A
4-Quadrant General-Purpose Source/Measure Unit

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• MSRP: $5,686 |Used starting at: $4,780

• In Stock!    GET QUOTE

Product Overview

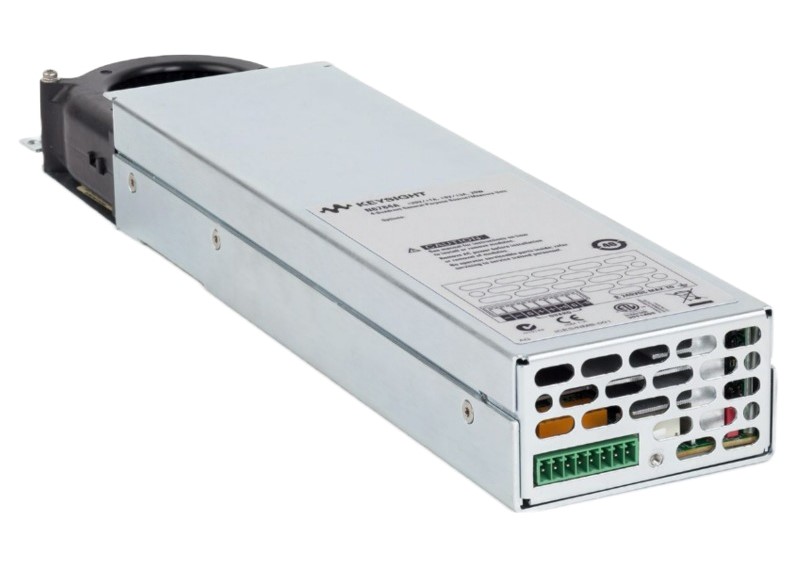

KEYSIGHT N6784A (Agilent)

The Keysight N6784A is a source/measure unit (SMU) designed for general-purpose precision sourcing and measurement. General-purpose applications can span many different industries and many different devices under test (DUTs). The N6784A SMU is a versatile tool designed to tackle many of these general-purpose applications. Its glitch-free operation ensures safe usage with the DUT during output and measurement range changes, even with capacitances of up to 150 µF. Its 4-quadrant operation enables it to act as a bipolar power supply or a bipolar electronic load, for added versatility. When using the N6784A SMU, engineers can be confident that they have an all-around general-purpose tool for their test systems or lab bench.

Key Specifications of the Keysight N6784A (Agilent) include:

Output Ratings:

• Voltage: Up to ±20 V
• Current: Up to ±3 A
• Power: 20 W

Programming Accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):

• Voltage, 20 V range: 0.025% + 1.8 mV
• Voltage, 6 V range: 0.025% + 600 µV
• Current, 3 A and 1 A ranges: 0.04% + 300 µA
• Current, 10 mA range: 0.25% + 5 µA

Output Programming Speed:

• Output voltage can change in 10 µs or at 100 kHz into a resistive load

Measurement Accuracy (at 23°C ± 5°C):

• Voltage, 20 V range: 0.025% + 1.2 mV
• Current, 3 A range: 0.03% + 250 µA
• Current, 100 mA range: 0.025% + 10 µA
• Current 10 µA range: 0.025% + 8 nA

Other features and benefits of the N6784A:

• Glitch-free sourcing and measurement ? change output and measurement ranges without any glitches
• 4-quadrant operation ? perform as a bipolar voltage or current source or as a bipolar CV or CC electronic load
• Four current programming ranges - precisely source current down µA
• Four current measurement ranges ? precisely capture the current levels of the DUT during different modes of operation
• Excellent transient response ? keep voltage or current stable during high-speed load changes
• Fast modulation of DC ? create waveforms up to 100 kHz to stimulate or load down the DUT
• High-speed digitized measurements ? capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer
