Keithley 2230-30-1
Programmable DC Power Supply,Triple, 6V, 5A / (2x) 30V, 1.5A

Power Supplies >> DC Power Supplies, Low Voltage (less than 60V), Low Current (less than 60A) >> Programmable DC Power Supply,Triple, 6V, 5A / (2x) 30V, 1.5A
Rent Used Test Equipment
Manufacturer: Keithley
Model: 2230-30-1

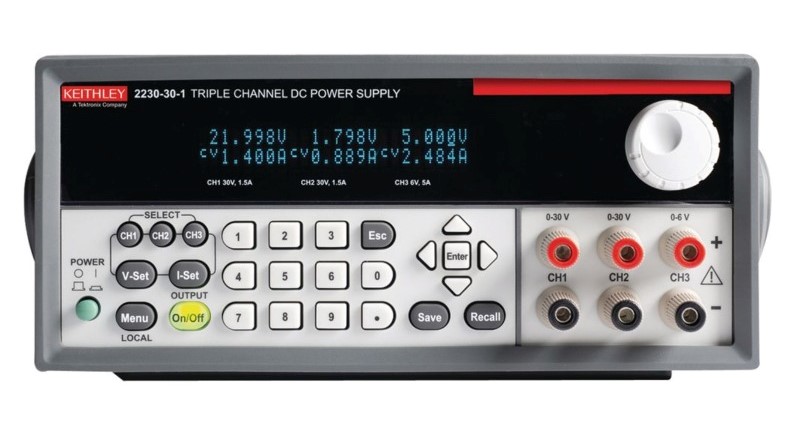

Keithley 2230-30-1 Programmable DC Power Supply,Triple, 6V, 5A / (2x) 30V, 1.5A

Electronic Test and Measurement Equipment

Keithley 2230-30-1 Programmable DC Power Supply,Triple, 6V, 5A / (2x) 30V, 1.5A Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT KEITHLEY 2230-30-1 Programmable DC Power Supply (Call for Availability)


The Keithley 2230-30-1 Multi-Channel Programmable DC Power Supplies combine three channels of output power to cost-effectively characterize and test a wide range of devices, circuit boards, modules, and products that require more than one power source.  The Models 2230-30-1 includes two 30V/1.5A channels and add a 6V channel with up to 5A output for powering digital circuits. These multi-channel power supplies offer an excellent combination of performance, versatility, and ease of use to maximize the information from characterization or test as quickly and as easily as possible.

Since each channel in these multi-channel power supplies is completely independent and isolated from each other, these power supplies can be used to provide power to two circuits that are optically isolated or transformer-isolated from each other and have different reference points. Their isolated channels eliminate the need for a second power supply to power one of the isolated circuits. Additionally, each channel can be independently controlled, so channels can be individually turned on and turned off at any time. Both isolated and independent channels provide excellent versatility and flexibility to address a wide range of test applications.


Features of the KEITHLEY 2230-30-1 Programmable DC Power Supply Include:

  • Triple output with two 30V/1.5A (45W) channels and a 6V/5A (30W) channel
  • All channels are independently controlled and have isolated outputs for maximum flexibility
  • All channels have remote sensing to ensure that programmed voltage is accurately applied to the load
  • Two 30V channels can be combined either in series to double output voltage or in parallel to double output current
  • 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data

See Datasheet for full specifications
