Keithley 2230G-30-3
Programmable DC Power Supply, Two 30V, 3A, One 5V, 3A, GPIB

Power Supplies >> DC Power Supplies, Low Voltage (less than 60V), Low Current (less than 60A) >> Programmable DC Power Supply, Two 30V, 3A, One 5V, 3A, GPIB
Rent Used Test Equipment
Manufacturer: Keithley
Model: 2230G-30-3

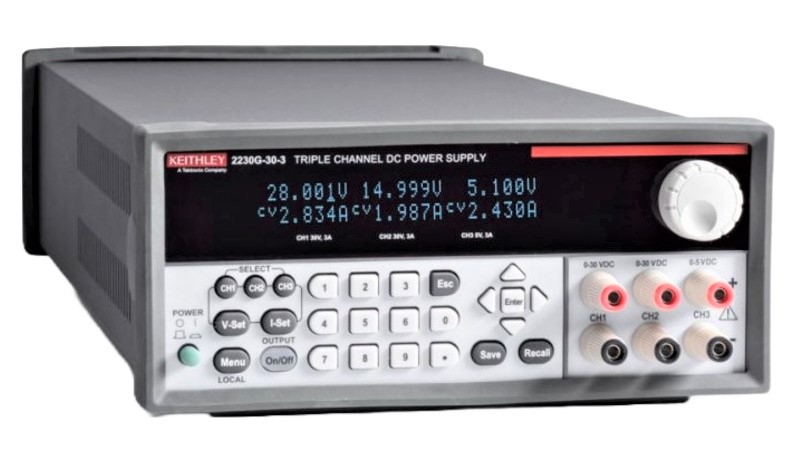

Keithley 2230G-30-3 Programmable DC Power Supply, Two 30V, 3A, One 5V, 3A, GPIB

Electronic Test and Measurement Equipment

Keithley 2230G-30-3 Programmable DC Power Supply, Two 30V, 3A, One 5V, 3A, GPIB Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT KEITHLEY 2230G-30-3 DC Power Supply (Call for Availability)


The Keithley  2230G-30-3 3-channel programmable power supplies provide up to 375 W of power in a space-saving 2U high, half-rack width enclosure to power automotive circuits, LED drivers, power supplies, power ICs, and other high-power circuits. The 2230G-30-3 provides two 30 V, 3 A channels as well as a 5 V, 3 A channel as the third channel. These three supplies are linear power supplies; thus, they are low noise supplies to have minimal impact on a device-under-test (DUT).

Each output channel of the Keithley 2230G-30-3 DC power supplies is both independent of the other channels and electrically isolated from the other channels. The setting and measurement basic voltage accuracy of each channel is 0.03%; and the setting and measurement resolution is 1 mV. In addition, using the remote sense leads for each channel ensures that the programmed voltage is applied to the load; the remote sense leads compensate for and overcome the voltage drops due to the resistances in the test leads.


Specifications for the KEITHLEY 2230G-30-3 DC Power Supply Include:

Output Voltage (Ch 1 and 2) 0 to 30V
Output Current (Ch 1 and 2) 0 to 3A
Output Voltage (Ch 3) 0 to 5V
Output Current (Ch 3) 0 to 3A


See Datasheet for full specifications


Click to see all the models in this series
