Rent or Buy BK Precision MR100020 High Voltage DC Power Supply, 1000V, 20A, 5000W



Tektronix Encore




BK Precision MR100020
High Voltage DC Power Supply, 1000V, 20A, 5000W

Power Supplies >> DC Power Supplies, High Voltage (60V and up), Low Current (less than 60A) >> High Voltage DC Power Supply, 1000V, 20A, 5000W
Rent Used Test Equipment
Manufacturer: BK Precision
Model: MR100020

CLICK TO ENLARGE BK Precision MR100020 High Voltage DC Power Supply, 1000V, 20A, 5000W

Electronic Test and Measurement Equipment

BK Precision MR100020 High Voltage DC Power Supply, 1000V, 20A, 5000W Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • No Options Included
  • MSRP: $5,590 | Available for Rental    GET QUOTE

Product Overview

RENT BK PRECISION MR100020 High Voltage DC Power Supply (Call for Availability)

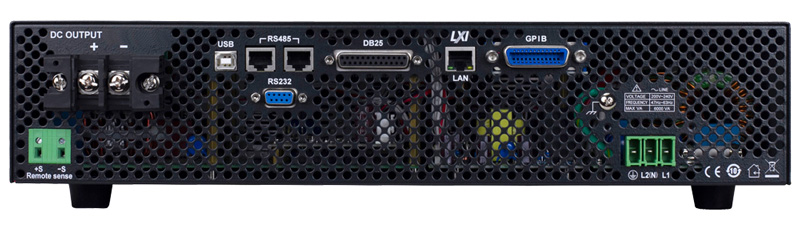

The BK Precision MR100020 Series of high voltage multi-range DC power supplies produce 1000V at up to 5kW of clean output power in a compact 2U form factor. For benchtop applications, the MR100020 offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. Operating software is provided for test sequence generation and data logging without the need to write source code.  In addition, this series supports USB, GPIB, LXI compliant LAN, and analog interfaces for remote control and programming.

Combined with the optional SAS application software, users of the BK Precision MR100020 can easily simulate the I-V curve of different arrays under various irradiance conditions while measuring and validating the effectiveness of the inverter’s MPPT algorithm. The galvanically isolated analog interface can be used to monitor voltage, current, regulation mode (CV or CC), or to indicate fault conditions. In addition to front panel and PC interface control, the BK Precision MR100020 can be controlled from zero to full scale by an external voltage signal or resistor (0 to 5 V / 5 kΩ or 0 to 10 V / 10 kΩ selectable). The power supply can be configured for Socket or Telnet connections through the LAN (Ethernet) and controlled using SCPI commands.



Specifications for the BK PRECISION MR100020 High Voltage DC Power Supply Include:

Output Voltage 0 - 1000V
Output Current 0 - 20A
Output Power 5000W
Programming Resolution 100mV / 1mA



See Datasheet for full specifications
