Chroma 61605
AC Source, 0-300V, 15 Hz - 1 kHz, 4000W, 1 Phase

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• Available for Rental    GET QUOTE

Product Overview

RENT Chroma 61605 AC Power Source (Call for Availability)

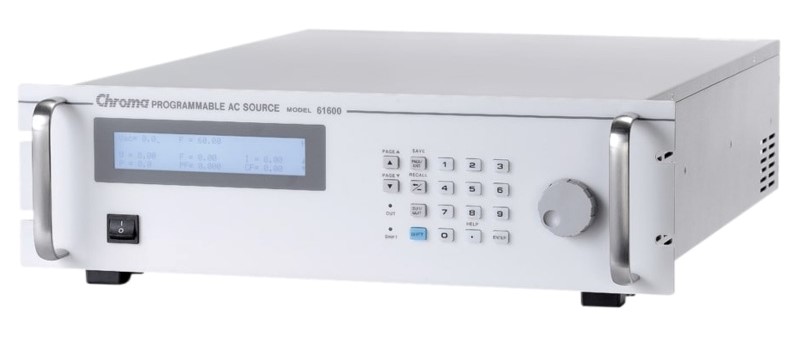

    The Chroma Programmable 61605 AC Power Source delivers pure, instrument grade AC power with distortion less than 0.3% at 50/60Hz. With the state-of-the-art PWM technology and power factor correction circuit, the 61605 AC source yields higher efficiency and delivers more output power. The AC+DC modes extend the applications not only pure AC voltage but also DC component for testing DC offset in laboratory.

    Applying the advanced DSP technology, the Chroma 61605 is able to provide precision and high speed measurements such as RMS voltage, RMS current, true power, frequency, power factor, and current crest factor. It supplies the output voltage from 0 to 300VAC, frequency from 15 to 1000Hz and is suitable for commercial, avionics, and military applications from bench-top testing to mass production. For convenience sake, the 61605 AC power source offers versatile front panel operations with LCD display and rotary knob.  Users may also control it remotely via GPIB, RS232C or APG (Analog Programming) interface.

Specifications of the Chroma 61605 AC Power Source includes:

See Datasheet for Full Specifications

Click to see all the models in this series
