Tektronix P7380A
8 GHz Z-Active Low Voltage Differential Probe
Oscilloscopes >> Accessories and Other >> 8 GHz Z-Active Low Voltage Differential Probe
Model: P7380A
|
Download Product Datasheet
Available Option Configurations
Config-01
- No Options Included
MSRP: $11,600 |
In Stock! GET QUOTE
Config-01
Product Overview

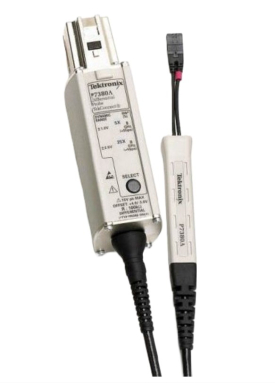

Tektronix P7380A
Tektronix created the P7380A with Z-Active probe architecture and set the industry benchmark for signal fidelity. Tektronix active probe architecture preserves high bandwidth while providing improved connectivity with low loading and low noise. The Tektronix P7380A design is a hybrid approach composed of a distributed attenuator topology feeding an active probe amplifier.
The Z-Active probes use a tiny passive probe tip element that is separate from the amplifier, extending the usable reach of the probe. In traditional active probes, adding this much length can introduce signal fidelity problems. However this architecture maintains high DC input resistance and presents a higher AC impedance than other probe architectures. It accomplishes this while providing significant length between the probe body and the probe attachment point to the DUT. Thus the P7380A provides the best of both worlds: high DC impedance like existing active probes and the stable high-frequency loading of Z0 probes.
Features and Specifications
- Signal fidelity
- >12.5 GHz Bandwidth (P7313, typical)
- >8.0 GHz Bandwidth (P7380A, typical)
- >6.0 GHz Bandwidth (P7360A, typical)
- >4.0 GHz Bandwidth (P7340A, typical)
- Extended linear dynamic range
- 1.25 Vp-p at 5x Attenuation (P7313)
- 4 Vp-p at 25x Attenuation (P7313)
- 2 Vp-p at 5x Attenuation (P7380A, P7360A, P7340A)
- 5 Vp-p at 25x Attenuation (P7380A, P7360A, P7340A)
- Low probe loading
- DC Input resistance
- 100 kΩ Differential
- 50 kΩ Single ended
- AC Loading
- Zmin >200 Ω out to 10 GHz (P7313)
- Zmin >290 Ω, 4 GHz to 8 GHz (P7380A, P7360A, P7340A)
- DC Input resistance
- Versatility
- Make differential or single-ended (ground-referenced) measurements 1
- Solder-down capability
- Handheld probing with variable spacing and compliance
- Fixtured probing
- Interchangeable Tip-Clip™ assemblies
- Connect to a variety of devices
- Economical
