Keithley 2001-TCSCAN
Scanner Card, 9 Ch. for CJC, Voltage, Resistance / Frequency
Meters >> Accessories and Other >> Scanner Card, 9 Ch. for CJC, Voltage, Resistance / Frequency
Model: 2001-TCSCAN
|
Download Product Datasheet
Product Overview

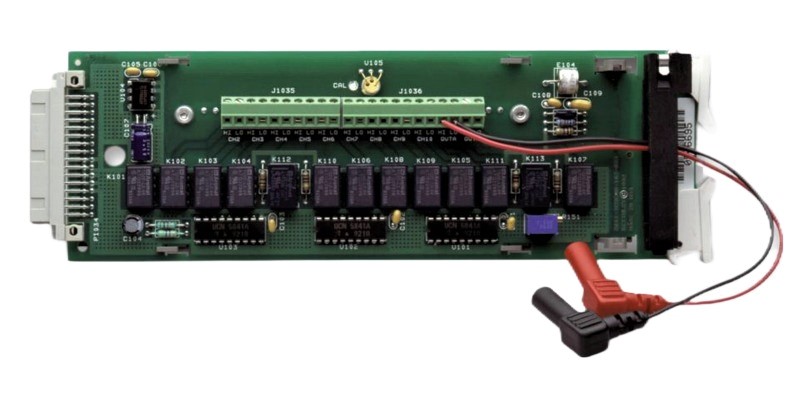

Keithley 2001-TCSCAN
The Keithley 2001-TCSCAN provides nine channels of cold-junction compensated temperature measurements and/or voltage, resistance, and frequency measurements when installed in a 2000, 2001, 2002, or 2010 DMM. Can also measure temperature directly using 2- or 4-wire RTDs (except with Model 2000).
The unique Trigger-Link feature included in the Keithley 2001 and 2002 and most Keithley test and measurement products can be used to coordinate the operation of two or more instruments. Trigger-Link combines six independent software selectable trigger lines on a single connector for simple, direct control over all instruments in a system.
Features and Specifications
- DC Voltage: 10nV to 1100V
- AC Voltage: 100nV to 775Vrms
- AC Voltage Bandwith: 1 Hz to 2MHz
- DC Current: 10pA to 2.1A
- Frequency: 1Hz to 15MHz
- Frequency Sensitivity: 60mV to 775Vrms
- Peak Spikes-Repetitive: 500ns to 16s
- Crest Factor: 20Hz to 1MHz
REQUEST A QUOTE
| Testimonials |
|
I want you to know how much I appreciate how efficient and helpful you and your team are...and that you are my go-to for any electrical equipment rental needs I may have in the future. Thank you again, have a great day! -- Josh G. Harrison, OH |
Customers who viewed this also viewed | |||||||
Keithley 237 High Voltage Source Measure Unit
|

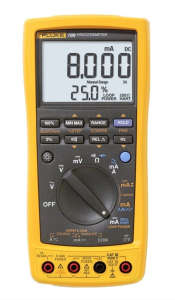

Fluke 789 ProcessMeter
|
