Chroma 63802
AC & DC Electronic Load, 1800W, 18A, 350VAC

Electronic Loads >> AC Electronic Loads and AC/DC Combo Loads >> AC & DC Electronic Load, 1800W, 18A, 350VAC
Rent Used Test Equipment
Manufacturer: Chroma
Model: 63802

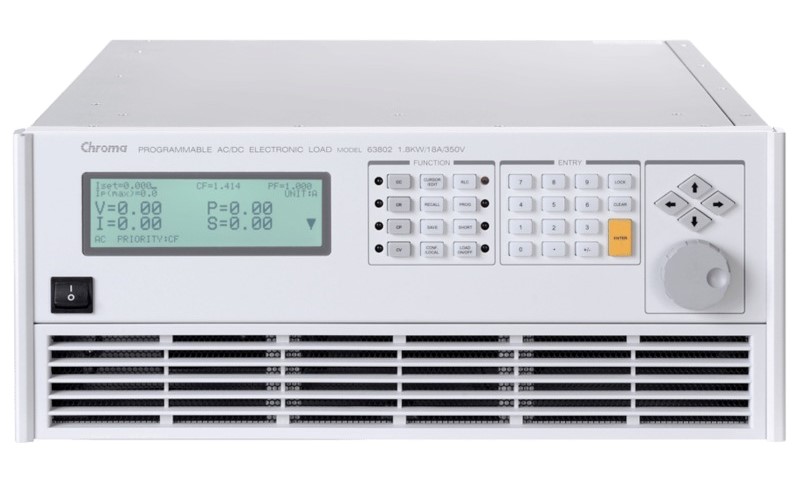

Chroma 63802 AC & DC Electronic Load, 1800W, 18A, 350VAC

Electronic Test and Measurement Equipment

Chroma 63802 AC & DC Electronic Load, 1800W, 18A, 350VAC Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • No Options Included
  • Available for Rental    GET QUOTE

Product Overview

RENT CHROMA 63802 AC & DC Electronic Load


    Chroma's 63802 AC & DC Electronic Loads are designed for testing Uninterruptible Power Supplies(UPS), Off-Grid Inverters, AC sources and other power devices such as switches, circuit breakers, fuses and connectors. The state of the art design uses DSP technology to simulate non-linear rectified loads with its unique RLC operation mode, which improves stability by detecting the impedance of the UUT and dynamically adjusting the load's control bandwidth to ensure the system's stability.

    Included in the Chroma 63802 AC & DC Electronic load are built-in 16-bit precision measurement circuits to measure the steady-state and transient responses for true RMS voltage, true RMS current, true power(P), apparent power(S), reactive power(Q), crest factor, power factor, THDv and peak repetitive current. There are two unique operating modes for AC load simulation and DC load simulation includes four load modes.  A special DC Rectified mode is included to simulate the loading behavior of distributed inverters. This unique load mode makes the Chroma 63802 load ideal for Fuel Cell, PV module/array and Battery testing.


Specifications for the Chroma 83602 AC & DC Electronic Load Include:

Power   1800W
Current       0-18A rms (54A peak, continue)
Voltage    50-350V rms (500V peak)
Frequency   45-440Hz, DC


See Datasheet for full specifications
