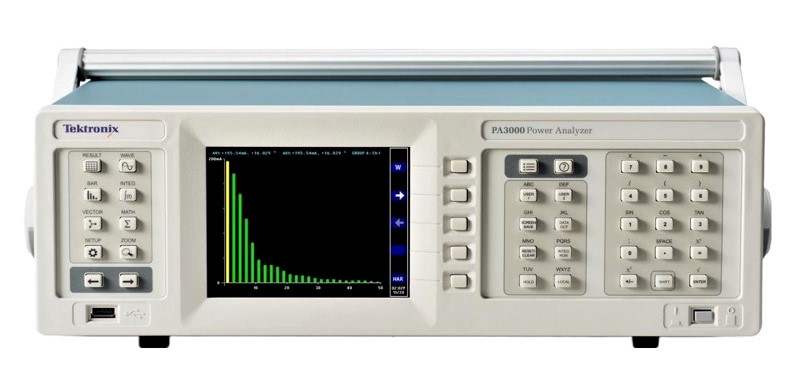

Tektronix PA3000
Power Analyzer, Multi-Phase

Download Product Datasheet

Available Option Configurations

Config-01

• 4CH - Power Analyzer with four Input Module
• GPIB - IEEE488 (GPIB) COMMUNICATION OPTION
• MSRP: $17,941 |Used starting at: $10,460

• In Stock!    GET QUOTE

Config-02

• 4CH - Power Analyzer with four Input Module
• MSRP: $17,300 |Used starting at: $10,265

• In Stock!    GET QUOTE

Product Overview

RENT TEKTRONIX PA3000 Multi-Phase Power Analyzer (Call for Availability)

The Tektronix PA3000 is a one to four channel power analyzer that is optimized for testing today’s single and multi-phase, high efficiency power conversion products and designs. Use it to quickly visualize, analyze, and document power efficiency, energy consumption, and electrical performance to the latest regional and international standards, including Level VI, EnergyStar, CEC, IEC 62301, CQC-3146, and more. Key tests include efficiency, standby power, harmonics, inrush current, and input power parameters such as power factor. The PA3000's graphical color display and PWRVIEW software boost productivity when performing these tests.

Key Features for the TEKTRONIX PA3000 Multi-Phase Power Analyzer Include:

• One to four channels support single and three phase applications
• 10 mW standby power measurement
• 1 MHz bandwidth
• 1 MS/s sampling rate
• 16 bit A/D
• Harmonic analysis to 100th order
• ±0.04% basic voltage and current accuracy
• Measurements to 30 A_rms and 600 V_rms Cat II (2000 V_pk)
• USB and LAN interfaces standard (GPIB option)

See Datasheet for full specifications
