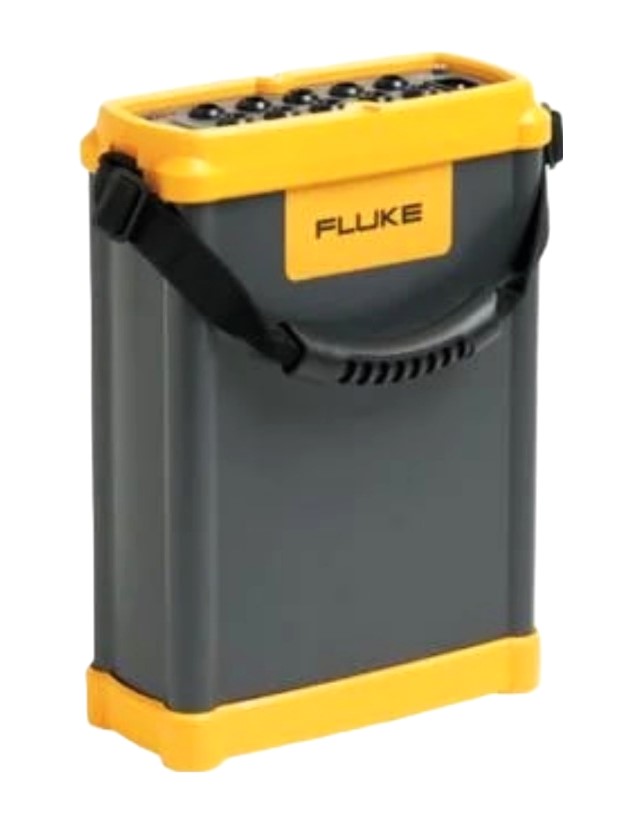

Fluke 1750
Power Quality Recorder, 3-Phase

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• MSRP: $15,544
• Available for Rental    GET QUOTE

Product Overview

RENT Fluke 1750 Power Recorder (call for availability)

The Fluke 1750 Power Recorder allows you to record three-phase power quality and monitor for power quality disturbances. The Fluke 1750 Power Meter automatically records every power quality parameter and event, on every cycle – all the time.

The recorder automatically detects, scales, and powers current probes without needing batteries. Requiring only single-lead voltage connections enables safe and quick setups. Once power is applied the instrument automatically begins recording and LEDs give you assurance that the recorder is powered up and signals are within range – no more uncertainty that data is being recorded. The Fluke 1750 has an exclusive capture algorithm which makes certain all events are captured without the tedious setups and blind spots associated with threshold driven equipment. The PDA wirelessly interfaces with the recorder, allowing quick setup and verification with waveform displays, meter screens, and phasor diagrams. The built-in wireless technology allows you to control multiple instruments from a distance easily, without the need for a laptop computer (laptops can also be used when desired).

Features of the Fluke 1750 Power Recorder include:

• Premium accuracy and measurement techniques: Guaranteed for all power quality parameters, with IEC 61000-4-30 Class A measurement systems
• Quick and reliable configuration: PDA wireless front panel interface provides a window into what the instrument is recording, enabling quick and reliable configuration even in awkward test locations
• Threshold-free set up: Apply thresholds after data is collected with Fluke Power Analyze Software
• Captures everything: Cross-channel and current triggering capture every measurement, on every channel, every time
• Intuitive PC software: Easily analyze data and generate reports
• Plug and play: Set up in minutes with self-identifying current probes and single-lead voltage connections
• No need to reconnect wires: Swap channels internally with the wireless PDA or PC when connections are not correct
• Measure every parameter: Voltage and current on three phases, neutral, and ground
• 5 MHz, 8000 Vpk waveform capture: Get a detailed picture of even the shortest events
• Quickly retrieve data: With included SD memory card or via the 100BaseT high-speed Ethernet connection

Applications for the Fluke 1750 include:

• Long-term analysis: Uncover hard-to-find or intermittent issues
• Power quality surveys: Quantify power quality throughout a facility, documenting results with professional reports
• Quality of service compliance: Validate incoming power quality at the service entrance
• Semi-permanent monitoring: Monitor critical equipment, capturing power quality events to correlate with equipment malfunctions

Rent Fluke 1750 (call for availability)
