Seaward PV150
Photovoltaic Tester, 1000 VDC
Electrical Test and Power Analyzers >> Photovoltaic Analyzers and Testers (PV) >> Photovoltaic Tester, 1000 VDC
Model: PV150
|
Download Product Datasheet
Product Overview
RENT SEAWARD PV150 Photovoltaic Tester (Call for Availability)

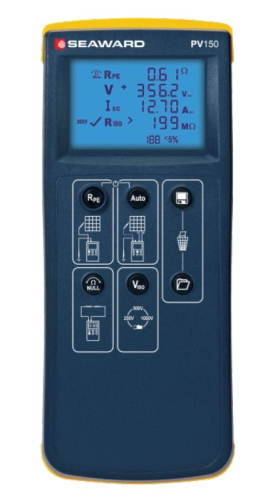

The Seaward PV150 Solar Installation Tester is a versatile and user-friendly device designed for ensuring the electrical safety and performance of photovoltaic installations. It revolutionizes PV system testing by combining functions such as ground continuity, DC operating power, operating current tests, insulation resistance, open circuit voltage, and short circuit current measurements into a handheld tool. It wirelessly captures real-time data like irradiance, ambient temperature, and PV module temperature from the Solar Survey 200R.
The Seawatd PV150 memory stores up to 200 complete test records and includes USB connectivity for quick PC download enabling efficient record-keeping. It supports the creation of professional test certificates and reports through Seaward’s SolarCert software. The PV150's features include ground continuity measurement, open circuit voltage measurement up to 1000V DC, short circuit current measurement up to 15A DC, PV array insulation tests at different voltages, and compatibility with individual PV modules or strings.
Specifications for the SEAWARD PV150 Photovoltaic Tester Include:
| Voltage Measurement Range | 5 VDC - 1000 VDC |
| Current Measurement Range | 0.5 ADC - 15 ADC |
| Voltage Measurement Accuracy | ± (0.5 % + 2 digits) |
| Current Measurement Accuracy | ± (1% + 2 digits) |
See Datasheet for full specifications
