Manufacturer: Doble
Model: F6150SV

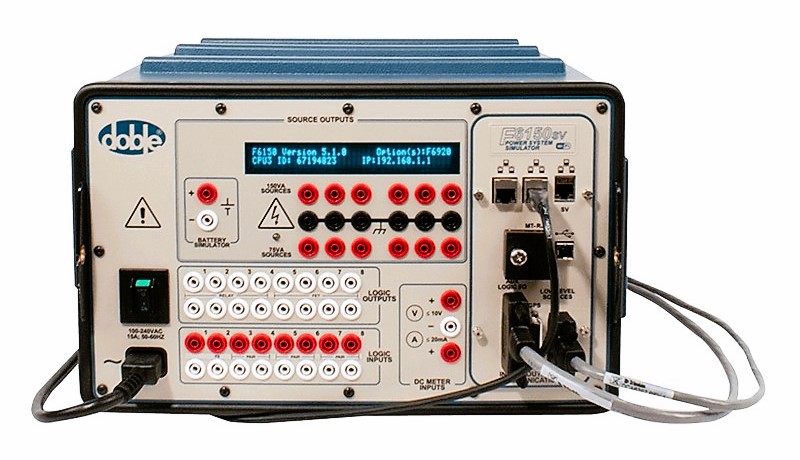

Doble F6150SV Power System Simulator

Electronic Test and Measurement Equipment

Doble F6150SV Power System Simulator Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT DOBLE F6150SV Power System Simulator (Call for Availability)


The Doble F6150sv is your versatile solution for testing IEC 61850-based protection devices and schemes. This power system simulator performs the simplest through the most complex tests. The F6150sv has the highest output current of any simulator on the market - all within a single box. Meeting all your testing needs, the F6150sv is available in three different models. The F6150sv tests IEC 61850-based systems at the process level and station level using both sampled values and GOOSE messages.


Features of the DOBLE F6150SV Power System Simulator Include:

  • Simulate three streams of IEC 61850 9-2LE sampled values through one fiber-optic port and one copper (RJ45) port*
  • Wi-Fi capable (optional)
  • Simulates (publishes) and subscribes to IEC 61850 GOOSE messages involving multiple IEDs**
  • Performs standard relay calibration and verification testing of high-burden (electromechanical), solid-state, and microprocessor-based relays
  • Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating. The following ranges are available with the F6005 Enhanced Rating Option: (6 x 35, 3 x 70, 1 x 210 A).
  • Performs state simulation and transient testing
  • Tests 0.2-class metering CTs and transducers
  • Implements end-to-end testing of communications-based schemes with GPS time syncing
  • Maximum of 12 high-level analog sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes


See Datasheet for full specifications
