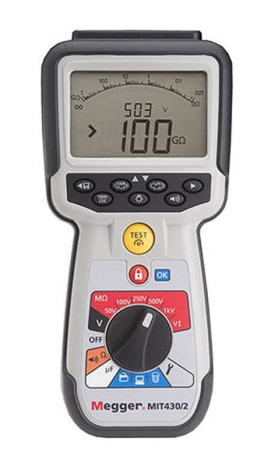

Megger (AVO Biddle) MIT430/2
Megohmmeter Insulation and Continuity Tester, 1000V

Download Product Datasheet

Product Overview

RENT MEGGER MIT430/2 Megohmmeter Insulation and Continuity Tester (Call for Availability)

The Megger MIT430/2 insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance and more. Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%. Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

A variable range has been added to the Megger MIT430/2 to allow any intermediate voltage from 10 V to 1000 V in 1 V steps, where application specific test voltages are required that do not appear in the standard ranges. Every tester is sealed to IP54, providing a weatherproof case to reduce the chances of water ingress, including the battery and fuse compartment. Revised Bluetooth and pairing procedures have made the MIT430/2 far easier to pair and download data. The test results are downloaded to a CSV file which can then be opened as an Excel spreadsheet.

Features of the MEGGER MIT430/2 Megohmmeter Insulation and Continuity Tester Include:

• Designed for Electrical and Industrial testing
• Insulation testing up to 1000 V and 200 GΩ range
• Stabilised insulation test voltage
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ
• Adjustable insulation test voltage from 10 V to 1000 V
• 600 V Trms AC and DC voltage measurement
• New case design with optional magnetic hanging strap
• Test result storage and Bluetooth downloading
• Live circuit detection and protection
• Rechargeable options for mains and car charging
• CAT IV 600 V and IP54

See Datasheet for full specifications

For Solar PV applications, see here: SOLAR PV ANALYZERS
