Hipotronics X-WAVE
Sectionalizing Primary Cable Fault Locator, 500V to 10kV, 12.5mA
Electrical Test and Power Analyzers >> Cable Fault Locators and Testers >> Sectionalizing Primary Cable Fault Locator, 500V to 10kV, 12.5mA
Model: X-WAVE
|
Download Product Datasheet
Available Option Configurations
Config-01
- No Options Included
MSRP: $14,065 |
In Stock! GET QUOTE
Config-01
Product Overview

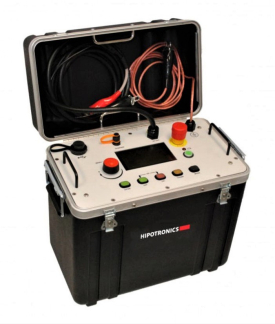

HAEFELY / HIPOTRONICS X-WAVE SECTIONALIZING PRIMARY CABLE FAULT LOCATOR (Call for Availability)
The Haefely / Hipotronics Sectionalizing Primary Cable Fault Locator is an advanced, safe, and powerful cable fault-locating tool for sectionalizing URD loop feed installations. It is specifically designed to shorten restoration time and increase productivity for a wide range of customers.
Features and Specifications of the Haefely / Hipotronics X-WAVE Sectionalizing Primary Cable Fault Locator include:
Features:
- Automatic indentification of key cable parameters (cable length and distance to fault)
- Quick location of faults
- Accessible memory locations for internal trace storage
- Large LCD display designed with a trans-reflective film for use in direct sunlight
- Automatic setup of sampling rate, gain and pulse width
- Easy to Use:
- Intuitive step-by-step instructions ensures ease of operation
- Device walks user through test procedure
- In 5 easy steps you've locate the fault
- Large, easy-to-use buttons
- Equipped with microprocessor-based control system
- Isolated return and all front panel parts securely grounded for safe operation of the unit
- Multi-Purpose Device has ability to pre-locate, locate and diagnose cable faults
- Serial Port allows for waveform download and evaluation of test results
- By quickly locating cable faults you reduce outage time and get power back to your customers sooner
- Using a TDR reduces thumping and therefore reduces damage to the cable
Specifications:
- System Output: 500V to 10kV, 12.5mA (maximum)
- Pulse:
- Amplitude: 160V, 50Ω
- Width: 60-400nsec
- Maximum Inpulse Energy (Thumper): 350J
- Repetition Rate: 6 sec @ maximum voltage
- Sampling Rate: 80MHz
- Accuracy: ± 1% of total cable length
- Cable Range: 50ft - 10,000ft (15m - 3km)
- Operational Modes:
- Arc Reflection (High Voltage TDR)
- Direct TDR (Low Voltage TDR)
- DC Hipot
- Capacitive Discharge/Impulse (Thump)
- Display: Trans-Reflective, mono-chrome LCD monitor, 6.5 in (16.5cm)
