Tektronix Encore

Yokogawa 720230
Logic Input Module, 2x 8-bit ports

Data Acquisition and Recorders >> Accessories and Other >> Logic Input Module, 2x 8-bit ports
Rent Used Test Equipment
Manufacturer: Yokogawa
Model: 720230

Yokogawa 720230 Logic Input Module, 2x 8-bit ports

Electronic Test and Measurement Equipment

Yokogawa 720230 Logic Input Module, 2x 8-bit ports Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT Yokogawa 720230 (call for availability)

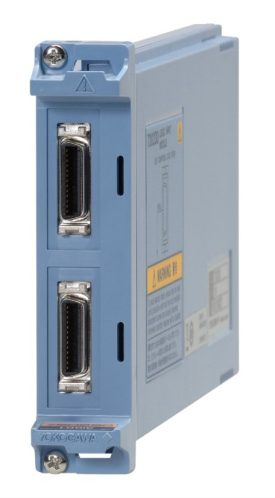

The Yokogawa 720230 Logic Input Module, 2x 8-bit ports, used in the DL850 ScopeCorder, allows input logic signals to be displayed as waveforms at a sampling resolution of up to 10 MS/s. Each port can measure 8 bits, and 2 ports of input are available on each module. Thus, a single module can observe 16-bit logic signals. You can turn display of individual bits ON/OFF, and give each bit its own unique label.

In all, you can input and display up to 128 bits of logic signals by installing up to 8 modules in a single DL850. You can select from 4 different types of logic probe to best fit the input signal.

The input format, maximum input voltage, threshold level, and other settings depend on the logic probe being used. Please refer to the specifications of your logic probe. The following logic probes can be used.
