Yokogawa 701260
Input Module, High-voltage, 100 KS/s, 16-bit isolation with RMS (2 channels)

Data Acquisition and Recorders >> Accessories and Other >> Input Module, High-voltage, 100 KS/s, 16-bit isolation with RMS (2 channels)





Download Product Datasheet

Product Overview

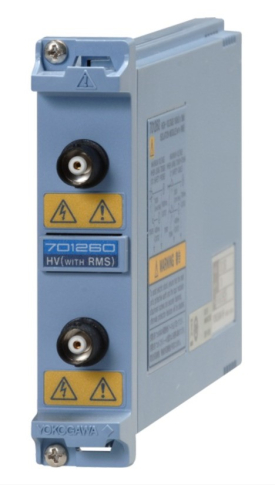

YOKOGAWA 701260

The Yokogawa 701260 Input Module, offers high speed and 12-bit isolation. Specifications of the Yokogawa 701260 module include:

• Input channels 2
• Input couplings AC, DC, GND, AC-RMS, DC-RMS
• Maximum sampling rate 100 kS/s
• A/D conversion resolution 16 bits (2400 LSB/div)
• Input type Isolated unbalanced
• Frequency range(–3 dB)
• Waveform measurement mode
• DC, up to 40 kHz
• RMS measurement mode
• DC, 40 Hz to 10 kHz
• Input range
• (10:1) 200 mV/div to 2000 V/div (in steps of 1, 2, or 5)
• (1:1) 20 mV/div to 200 V/div (in steps of 1, 2, or 5)
• Effective measurement range 20 div (display range 10 div)
• DC offset ±5 div
• Maximum input voltage (1 kHz or less)
• In combination with 700929(10:1)
• 1000 V (DC + ACpeak)
• In combination with 701901+701954 (1:1)
• H side: 700 Vrms (CAT II) 7 , L side: 400 Vrms (CAT II)
• Maximum allowable in-phase voltage
• In combination with 700929 (10:1)
• H side: 1000 Vrms (CAT II) 4 , L side: 400 Vrms (CAT II)
• Direct input (when using a cable which doesn’t comply with the safety standard)
• H/L sides: 30 Vrms (42 V DC + ACpeak)
• DC accuracy (waveform measurement mode)
• ±(0.25% of 10 div)
• DC accuracy (RMS measurement mode)
• ±(1.0% of 10 div)
• AC accuracy (RMS measurement mode)
• Sine wave input ±(1.5% of 10 div)
• Crest factor of 2 or less ±(2.0% of 10 div)
• Crest factor of 3 or less ±(3.0% of 10 div)
• Input impedance 1 M? ± 1%, approx. 35 pF
• Connector type Isolation type BNC connector
• Input filter  OFF, 100 Hz, 1 kHz, 10 kHz
• Temperature coefficient
• Zero point ±(0.02% of 10 div)/°C (typical value)
• Gain ±(0.02% of 10 div)/°C (typical value)
