Solar 9354-1
Universal Transient Generator

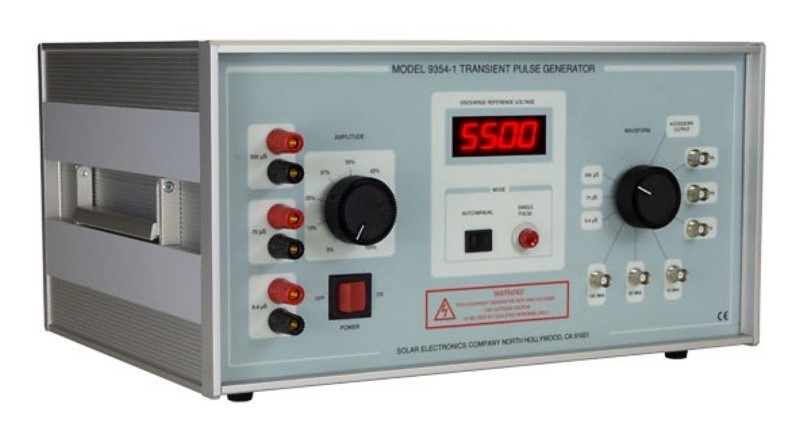

CLICK TO ENLARGE

Download Product Datasheet

Available Option Configurations

Config-02

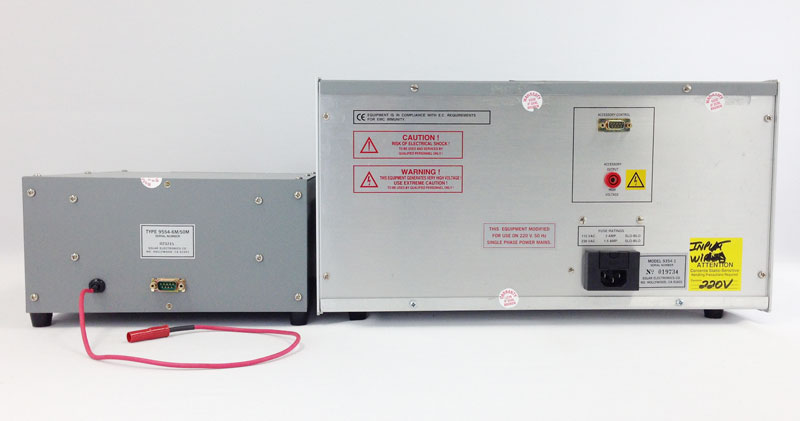

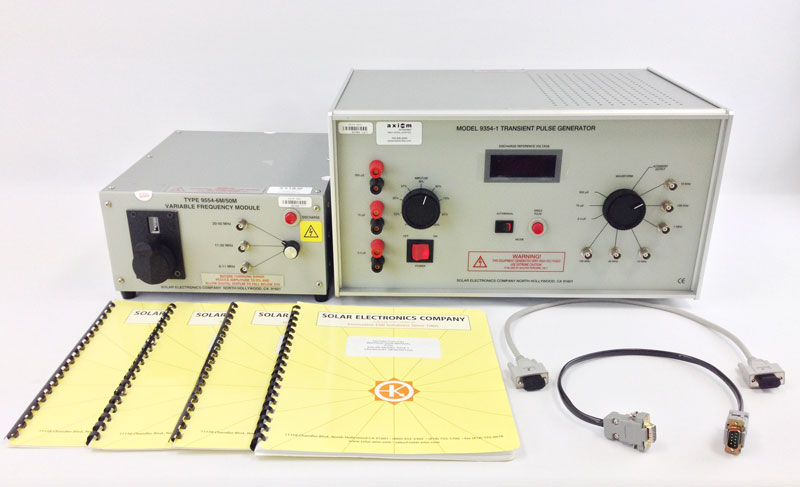

• 9554-6M/50M - Variable Frequency Module
• Available for Rental    GET QUOTE

Product Overview

RENT SOLAR 9354-1 TRANSIENT GENERATOR (Call for Availability)

The Solar 9354-1 Transient Generator was specifically engineered for pulse susceptibility testing on subsystems and equipment. With various accessories, including reactive networks and coupling devices, loop antennas, parallel plates, and TEM cells, the generated output may be altered and applied to other specifications.

Features and Specifications of the Solar 9354-1 Transient Generator include:

Features of the Solar 9354-1 Generator:

• Panel-mounted digital voltmeter monitors the adjusted open circuit discharge voltage
• Pulse rates up to one pulse per second maximum
• Single pulse feature enables controlled isolation of transient effects
• Output voltage ajustable from 0.1% to 100% of selected discharge voltage
• Applications:
• Susceptibility tests in accordance with MIL-STD-461E/F/G, Method CS116
• Limited testing for RTCA DO-160D, Section 22

Specifications of the Solar 9354-1 Transient Generator:

• Damped Sinusoid Pulses:
• 10 kHz:
• Open circuit voltage:  30 V
• Calculated short circuit current:  120 A
• Source impedance:
• 100 kHz:
• Open circuit voltage:  300 V
• Calculated short circuit current:  120A
• Source impedance:
• 1 MHz:
• Open circuit voltage:  3200 V/div>
• Calculated short circuit current:  128A
• Source impedance:
• 10 MHz:
• Open circuit voltage:  3200 V
• Calculated short circuit current:  128 A
• Source impedance:
• 30 MHz:
• Open circuit voltage:  1000 V
• Calculated short circuit current:  20 A
• Source impedance:
• 100 MHz:
• Open circuit voltage:  300 V
• Calculated short circuit current 6 A
• Source impedance:
• DO-160E/F/G test levels possible from model 9354-1 applications:
• Waveform:  1 (70 μS):
• Pin injection:  no requirement
• Cable bundle injection:  level 1 - 4
• Waveform:  2 (6.4 μS):
• Pin injection:  no requirement
• Cable bundle injection:  level 1 - 4
• Waveform:  3A (1 MHz):
• Pin injection:  level 1 - 5
• Cable bundle injection:  level 1 - 4
• Waveform:  3B (10 MHz):
• Pin injection:  no requirement
• Cable bundle injection:  level 1 - 4
• Waveform:  4 (70 μS):
• Pin injection:  level 1 - 5
• Cable bundle injection:  level 1 - 4
• Waveform:  5B (500 µS):
• Pin injection:  level 1 - 4
• Cable bundle injection:  level 1 - 3
• Double exponential pulses:
• 6.4 µS:
• Rise time:  100 nS
• Open circuit voltage:  1600 V
• Calculated short circuit current:  800 A
• Source impedance:
• 70.0 µS:
• Rise time:  6.4 µS
• Open circuit voltage:  1600 V
• Calculated short circuit current:  800 A
• Source impedance:
• 500 µS:
• Rise time:  50 µS
• Open circuit voltage:  1600 V
• Calculated short circuit current:  400 A
• Source impedance:
