Agilent U8903A, Keysight U8903A, HP U8903A
Audio Analyzer

Download Product Datasheet

Available Option Configurations

Config-02

• No Options Included
• MSRP: $13,352
• Available for Rental    GET QUOTE

Product Overview

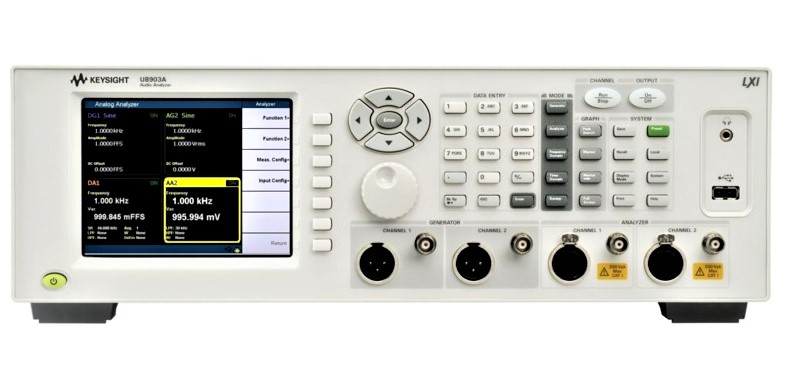

The Keysight U8903A (Agilent) Audio Analyzer combines the functionality of a distortion meter, SINAD meter, frequency counter, AC voltmeter, DC voltmeter and FFT analyzer with a low-distortion audio source. On the bench or in a test system, its accuracy and versatility will help you make an audible difference in your end product. The Keysight U8903A is the next-generation replacement for the widely used Agilent 8903B audio analyzer.

Whether listening to mono, stereo or surround, the human ear knows what sounds good. Measuring “how good,” however, can be a challenge. The Keysight U8903A audio analyzer helps you measure and quantify audio performance in applications such as wireless audio, analog components and ICs, and consumer audio.

Across the audio spectrum and beyond, this scalable, single-unit solution provides versatile measurement functions, diverse test signals and powerful analysis capabilities. Whatever your application, the U8903A can help you make an audible difference in device performance.

The U8903A is the next-generation replacement for the widely used 8903B audio analyzer. Application note ‘Migrating Code from the 8903B to U8903A (5990-4135EN)’ provides compatible equivalent commands, and sample test programs comparing the old R2D2 codes with new U8903A SCPI commands’.

Key Specifications of the Keysight U8903A (Agilent) Audio Analyzer include:

• Select generator, analyzer, graph and sweep modes with one-button access Measure at DC and from 10 Hz to 100 kHz
• Characterize signal-to-noise ratio, SINAD, IMD, DFD, THD+N ratio, THD+N level, crosstalk, and more
• 2-Channels
• Apply weighting functions, standard filters and custom filters
• Stimulate your device with high-quality signals and arbitrary waveforms
• View numerical and graphical displays of measurement results
