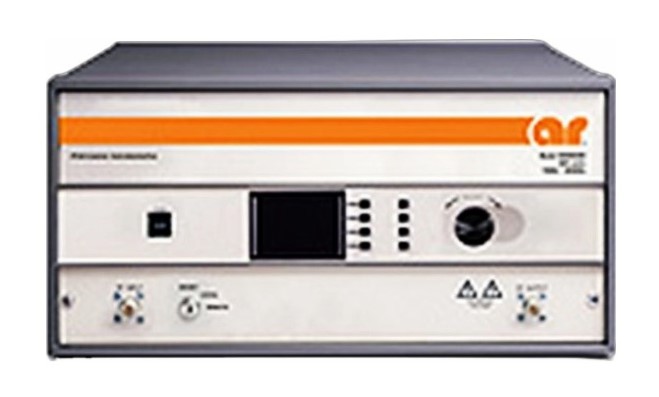

Amplifier Research 250S1G4A Microwave Amplifier, 0.8 - 4.2 GHz, 250W

Electronic Test and Measurement Equipment

Amplifier Research 250S1G4A Microwave Amplifier, 0.8 - 4.2 GHz, 250W Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT Amplifier Research 250S1G4 (Call for Availability)

The Amplifier Research 250S1G4 is a portable, self-contained, air-cooled, broadband, and completely solid-state ampifier designed for applications that require instantaneous bandwidth, high gain, and linearity. Its push-pull circuitry is utilized in all power stages lowering distortion and improving stability.

Features and Specifications of the Amplifier Research 250S1G4 Amplifier include:

  • Features:
    • Provides a minimum of 250 watts of RF power when used with a sweep generator
    • Digital Control Panel (DCP):
      • Provides both local and remote control of the amplifier
      • Uses a graphic liquid crystal display:
        • Provides operational presentation of Forward Power and Reflected Power
        • Provides control status
        • Provides reports of internal amplifier status
      • Uses menu assigned softkeys
      • Uses a single rotary knob
      • Uses four dedicated switches: POWER, STANDBY, OPERATE, and FAULT/RESET
      • Offers extensive control and status reporting capability
    • Provides gain control and RF output level protection
    • All control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet
    • Bus interface connector on the back panel
    • Local/Remote switch on front panel assures positive control of local or remote operation
    • Low level of spurious signals and linearity make it ideal for these various uses:
      • As a driver amplifier in testing wireless and communication components and subsystems
      • As a test instrument covering multiple frequency bands
      • For communication technologies including CDMA, W-CDMA, TDMA, GSM, etc.
      • For EMC Test applications where undistorted modulation envelopes are needed
  • Specifications:
    • Rated output power:  250 watts minimum
    • Input for rated output:  1.0 milliwatt maximum
    • Power output @ 3dB compression:
      • Nominal:  280 watts
      • Minimum:  240 watts
    • Power output @ 1dB compression:
      • Nominal:  240 watts
      • Minimum:  200 watts
    • Flatness:
      • Typical:  ±2.0 dB
      • Maximum:  ±2.5 dB
    • Frequency response:  0.8 – 4.2 GHz instantaneously
    • Gain (at maximum setting):  54 dB minimum
    • Gain adjustment:  15 dB minimum
    • Input impedance:  50 ohms, VSWR 2.0:1 maximum
    • Output impedance:  50 ohms nominal
    • Mismatch tolerance:
      • 100% of rated power without foldback
      • Will operate without damage or oscillation with any magnitude and phase of source and load impedance
    • Modulation capability:  Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
    • Harmonic distortion:  Minus 20 dBc maximum at 225 watts
    • Third order intercept point:  64 dBm typical
    • RF power display:  Digital, forward and reflected
    • Primary power:
      • 120-240VAC
      • 50/60 Hz, single phase
      • 1450 watts
    • Connectors:
      • RF:  Type N female on front panel
      • Safety Interlock: 15 pin female subminiature D on rear panel
      • Remote computer interface:  IEEE-488 (GPIB) and RS-232 connector on rear panel
      • Remote computer interface (fiber optic):  ST Conn Tx and Rx RS-232
      • Operate interface:  RJ-11 on rear panel
      • USB 2.0:  Type B
      • Ethernet:  RJ-45
    • IEEE-488 (GPIB) Interface and RS-232:  Allows control and monitoring of all front panel controls except keylock position control
    • Cooling:  Forced air (self contained fans)
