Product Overview

Rent Amplfier Research 1000T8G18B TWT Amplifier (Call for Availability):

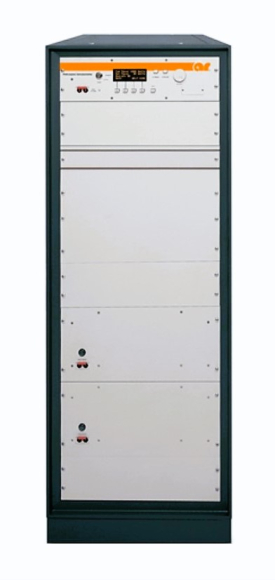

The Amplifier Research 1000T8G18B is a self contained, forced air-cooled, broadband traveling wave tube (TWT) microwave amplifier designed for applications where instantaneous bandwidth, high gain and high power output are required. Reliable TWT subsystems provide a conservative 1000 watts minimum at the amplifier output connector over most of the frequency range. Stated power specifications are at fundamental frequency. The amplifier's front panel digital display shows forward and reflected output plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess reflected power warning and remote. Standard features include a built-in IEEE-488 (GPIB) interface, 0 dBm input, VSWR protection, gain control, RF output sample ports, auto sleep, plus monitoring of TWT helix current, cathode voltage, collector voltage, heater current, heater voltage, baseplate temperature and cabinet temperature. Modular design of the power supply and RF components allow for easy access and repair. Use of a switching mode power supply results in significant weight reduction. The rated power is developed by efficiently power combining the outputs from four 300 watts (nominal) microwave tubes that are factory matched in gain and phase to offer moderate harmonic levels without added filters. Amplifier includes wheels, leveling feet and hooks for lifting. The Amplifier Research 1000T8G18B provides readily available RF power for a variety of applications in Test and Measurement, (including EMC RF susceptibility testing), Industrial and University Research and Development, and Service applications. Unit is CE marked to comply with EMC European Directive 89/336/EEC for operation inside a shielded room. Refer to the Amplifier Research Configuration Chart for alternative configurations and special features.


Functions and Specifications of the Amplifier Research 1000T8G18B Includes:


POWER (fundamental) , CW, @ OUTPUT CONNECTOR

Nominal: 1100 watts

Minimum: 1000 watts 7.5-17 GHz, 925 watts 17-18 GHz

Linear @ 1dB Compression: 250 watts minimum


FLATNESS: ±11 dB maximum, equalized for ±3 dB maximum

at rated power


FREQUENCY RESPONSE: 7.5–18 GHz instantaneously


INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum


GAIN (at maximum setting): 60 dB minimum


GAIN ADJUSTMENT (continuous range): 35 dB minimum


INPUT IMPEDANCE: 50 ohms, VSWR 2.0:1 maximum



OUTPUT IMPEDANCE: 50 ohms, VSWR 2.5:1 typical


MISMATCH TOLERANCE: Output power foldback protection at

reflected power exceeding 200 watts. Will operate without

damage or oscillation with any magnitude and phase of

source and load impedance. May oscillate with unshielded

open due to coupling to input. Should not be tested with

connector off.


MODULATION CAPABILITY: Will faithfully reproduce AM, FM, or

pulse modulation appearing on the input signal. AM peak

envelope power limited to specified power.


NOISE POWER DENSITY: Minus 70 dBm/Hz (maximum)

Minus 72 dBm/Hz (typical)


HARMONIC DISTORTION: Minus 20 dBc maximum,

Minus 27 dBc typical


PRIMARY POWER: See Model Configurations



RF input: Type N female

RF output: Type WRD 750D24 waveguide flange on rear panel

RF output sample ports (forward and reflected): Type N female

GPIB: IEEE-488 female

Interlock: DB-15 female on rear panel


COOLING: Forced air (self contained fans), air entry and exit in rear.


WEIGHT (approximate) : 295 kg (650 lb)

SIZE (WxHxD): 56 x 160 x 82.3 cm (22.1 x 63 x 32.4 in)
