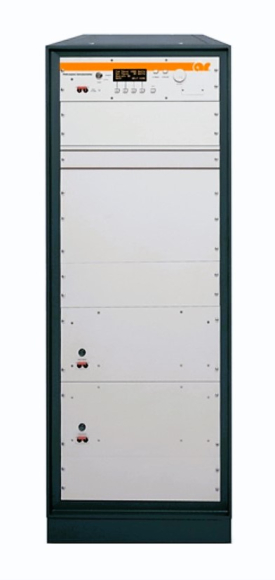

Rent Amplifier Research 1000T2G8B TWT Amplifier (Call for Availability):
The Amplifier Research 1000T2G8B is a self contained, forced air cooled, broadband traveling wave tube (TWT) microwave amplifier designed for applications where instantaneous bandwidth, high gain and high power output are required. Reliable TWT subsystems provide a conservative 1000 watts minimum over most of the frequency range at the amplifier output connector. Stated power specifications are at fundamental frequency. The amplifier's front panel digital display shows forward and reflected output plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess reflected power warning and remote. Standard features include a built-in IEEE-488 (GPIB) interface, 0dBm input, VSWR protection, gain control, RF output sample ports, plus monitoring of TWT helix current, cathode voltage, collector voltage, heater current, heater voltage, baseplate temperature and cabinet temperature. Modular design of the power supply and RF components allow for easy access and repair. Use of a switching mode power supply results in significant weight reduction. The rated power is developed by efficiently power combining the outputs from two 535 watts (nominal) microwave tubes that are factory matched in gain and phase to offer moderate harmonic levels without added filters. Amplifier includes wheels, leveling feet and lifting hooks. The Amplifier Research 1000T2G8B provides readily available RF power for a variety of applications in Test and Measurement, (including EMC RF susceptibility testing), Industrial and University Research and Development, and Service applications. Unit is CE marked to comply with EMC European Directive 89/336/EEC for operation inside a shielded room. Refer to the Amplifier Research Configuration Chart for alternative configurations.
Functions and Specifications of the Aplifier Research 1000T2G8B TWT Amplifier Includes:
POWER (fundamental), CW, @ OUTPUT CONNECTOR
Nominal: 1100 watts
Minimum: 900 watts minimum, 2.5–2.7GHz.
1000 watts minimum 2.7–7.5GHz.
Linear @ 1 dB Compression: 250 watts minimum
FLATNESS: ±8 dB maximum, equalized for ±3 dB maximum at rated power
FREQUENCY RESPONSE: 2.5–7.5 GHz instantaneously
INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum
GAIN (at maximum setting): 60 dB minimum
GAIN ADJUSTMENT (continuous range): 35 dB minimum
INPUT IMPEDANCE: 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE: 50 ohms, VSWR 2.5:1 typical
MISMATCH TOLERANCE: Output power foldback protection
at reflected power exceeding 200 watts. Will
operate without damage or oscillation with any
magnitude and phase of source and load impedance.
May oscillate with unshielded open due to coupling to
input. Should not be tested with connector off.
MODULATION CAPABILITY: Will faithfully reproduce AM, FM,
or pulse modulation appearing on the input signal.
AM peak envelope power limited to specified power.
NOISE POWER DENSITY:
Minus 80 dBm/Hz (maximum)
Minus 90 dBm/Hz (typical)
HARMONIC DISTORTION:
Minus 15 dBc maximum,
Minus 17 dBc typical
PRIMARY POWER : See Model Configuration
COOLING: Forced air (self contained fans), air entry and exit in rear.
WEIGHT (approximate): 295 kg (650 lb)
SIZE (WxHxD): 56 x 160 x 82.3 cm (22.1 x 63 x 32.4 in)
