Manufacturer: IFI Instruments
Model: SMC250

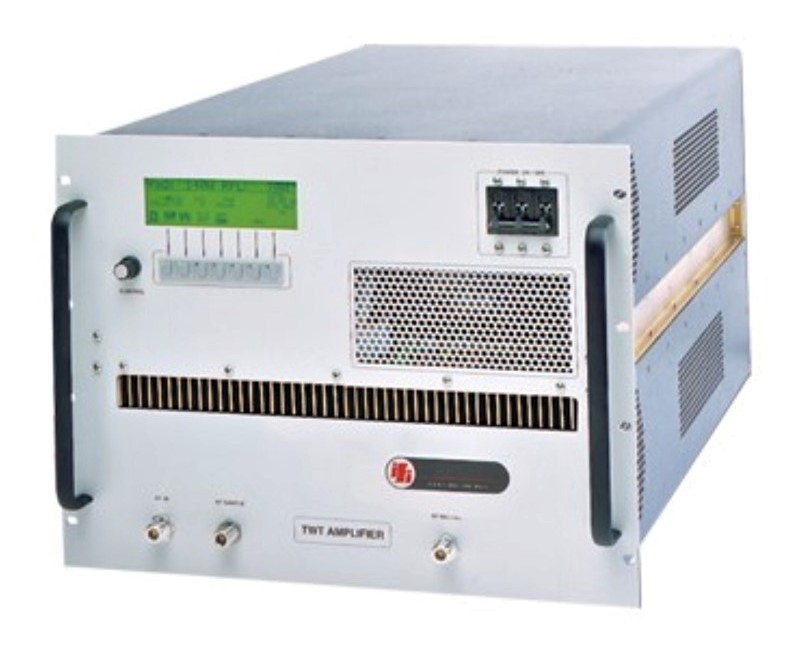

IFI Instruments SMC250 RF Amplifier, 80 MHz - 1 GHz, 250W

Electronic Test and Measurement Equipment

IFI Instruments SMC250 RF Amplifier, 80 MHz - 1 GHz, 250W Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • No Options Included
  • MSRP: $52,000 | In Stock!    GET QUOTE

Product Overview

RENT IFI INSTRUMENTS SMC250 RF Amplifier (Call for Availability)


The Instruments for Industry SMC250 RF Amplifiers provide outstanding RF performance. These state-of-the-art solid-state power amplifiers are specifically designed for laboratory and all testing applications. IFI RF amplifiers are very conservatively designed to operate below maximum ratings for ruggedness and long term reliability. Sixth generation LDMOS Transistors provide reliable brute-power performance at frequencies up to 1000 MHz.

The IFI SMC250 RF power amplifiers feature heavy-duty individually shielded aluminum housings at the module level. This concept of a shielded modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities. From the ground up, the “SMC-SERIES” products are structurally engineered to withstand operation in mechanically hostile environments. Ruggedized versions are available for applications that will be exposed to very harsh environments.

Standard Features for IFI SMC-Series Solid State Amplifiers


  • VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance, Open and Short Circuit Protection.
  • * Alternate Prime Power (specify at time of order)
  • GPIB IEEE 488 and RS232 Remote Control
  • RF Sample Port on the Front Panel, 112R for rear panel
  • Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less.
  • Gain Control Local and Remote, 30 dB range
  • RF Input/Output Connectors on the Front Panel, 118R for rear panel
  • Internal Systems Diagnostics and Status Indicators
  • Total/Operate Elapsed Time Metering in hours
  • RF Safety Interlock
  • Forward/Reflected Power Indication simultaneously on Front Panel display


Specifications for the IFI INSTRUMENTS SMC250 RF Amplifier Include:

Frequency 80MHz - 1000MHz
Rated Output Power 250W
Gain 54 dB min
P1dB Power (watts min.) 200


See Datasheet for full specifications
