Rent or Buy Amplifier Research 2000W1000D RF Amplifier, CW, 80 - 1000MHz, 2000W


Tektronix Encore




Amplifier Research 2000W1000D
RF Amplifier, CW, 80 - 1000MHz, 2000W

Amplifiers - RF and Microwave >> 1 GHz or Less and 1000 Watt or More >> RF Amplifier, CW, 80 - 1000MHz, 2000W
Rent Used Test Equipment
Manufacturer: Amplifier Research
Model: 2000W1000D

Amplifier Research 2000W1000D RF Amplifier, CW, 80 - 1000MHz, 2000W

Electronic Test and Measurement Equipment

Amplifier Research 2000W1000D RF Amplifier, CW, 80 - 1000MHz, 2000W Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT AMPLIFIER RESEARCH 2000W1000D RF AMPLIFIER (Call for Availability)

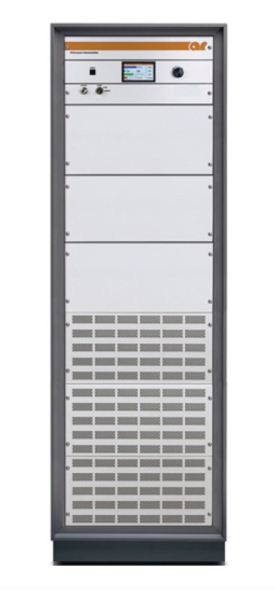

The Amplifier Research 2000W1000D is a self-contained, air-cooled, broadband, completely solid-state amplifier designed for applications where instantaneous bandwidth and high gain are required. When used with an RF sweep generator, the 2000W1000D RF amplifier will provide a minimum of 2000 watts of RF power. All amplifier control functions and status indications are available remotely in GPIB/IEEE488 format and RS-232 hardware and fiber optic, USB and Ethernet.

Housed in a single equipment rack, the Amplifier Research 2000W1000D provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and as a driver for frequency multipliers and higher power amplifiers. A Digital Control Panel (DCP) provides both local and remote control of the amplifier.  Special features include a gain control, internal automatic level control (ALC) with front panel control of the ALC threshold, forward and reflective RF sample ports. A safety interlock can be implemented via a rear panel connector.



Specifications for the Amplifier Research 2000W1000D RF Amplifier Include:

Rated Output power  2000W
Frequency Response  80-1000MHz
Gain (at max setting) 63 dB min
Harmonic Distortion -20 dBc typical



See Datasheet for full specifications
